STDP4320
DisplayPort 1.2a splitter
Datasheet
Rev A
MegaChips
nnnnn
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 2 of 39
Features
• DisplayPort® dual mode receiver
– DP 1.2a compliant
– Link rate HBR2/HBR/RBR
– SST or MST (up to eight streams)
– 1, 2, or 4 lanes
–AUX CH 1 Mbps
– HPD out
– HDMI/DVI operation (3.2 Gbps link rate)
– Functions as eDP and MyDP receiver
• DisplayPort dual mode transmitters
– Two transmitter ports
– DP 1.2a compliant
– Link rate HBR2/HBR/RBR
– SST or MST (up to eight streams)
– 1, 2, or 4 lanes
–AUX CH 1 Mbps
–HPD in
– HDMI/DVI operation (3.2 Gbps link rate)
with external level translator
– Functions as eDP transmitter
• SPDIF audio output
– Two SPDIF port pins
– 192 kHz/24 bits
– Compressed/LPCM
• Conversion from DP SST to TMDS format and
vice versa
• HDCP repeater with embedded keys
• AUX to I2C bridge for EDID/MCCS pass
through
– Maps on DDC ports
• Device configuration options
– SPI Flash
– I2C host interface
• Deep color support
– RGB/YCC (4:4:4) – 16-bit color
– YCC (4:2:2) – 16-bit color
• Spread spectrum on DisplayPort interface for
EMI reduction
• Bandwidth
– Video resolution up to 4K2K @ 60 Hz
– Audio 7.1 Ch up to 192 kHz sample rate
• Low power operation
– Standby 30 mW
• Package
– 172 LFBGA (12 x 12 mm)
• Power supply voltages
– 3.3 V I/O; 1.2 V core
Applications
• Audio-video router for PC/notebooks, docking
stations, hub, 4K2K TVs, daisy chain monitors,
digital signage
DP++ RX VIDEO PROC
AUDIO PROC
HDCP
CLOCK GEN
I2C MASTER
I2C SLAVE GPIO / MFP
OCM
27MHz
DP1.2 / HDMI 1.4
INPUT
HDMI DDC OUT
DP++ TX
DP++ TX
DP1.2 / HDMI 1.4
OUTPUT
HDMI DDC IN
I2C
SPDIF OUT
SPI DP1.2 / HDMI 1.4
OUTPUT
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 3 of 39
Contents
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2. Application overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Feature attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Input interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Output interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3 Supported video timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.4 Supported audio timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.5 Control channel interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.6 HDCP 1.3 support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.7 Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.8 Power supply voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.9 ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. BGA footprint and pin lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Ball grid array diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Full pin list sorted by pin number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5. Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.1 Pin list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2 Bootstrap configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6. Package specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.1 Package drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2 Package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.3 Marking field template and descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.4 Classification reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7. Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.1 Preliminary DC characteristics: absolute maximum ratings . . . . . . . . . . . 28
7.2 DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3 AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 4 of 39
7.3.1 DisplayPort receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3.2 DisplayPort transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3 HDMI receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.4 HDMI transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.3.5 Crystal specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.3.6 I2C interface timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.3.7 SPI interface timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9. Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 5 of 39
List of Tables
Table 1. Pin list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 2. DisplayPort receiver pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 3. System function pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 4. Multi-function pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 5. Transmitter pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 6. System power and ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 7. Reserved pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 8. Bootstrap configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 9. Field descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 10. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 11. DC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 12. Maximum speed of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table 13. DisplayPort receiver electrical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 14. DisplayPort transmitter electrical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table 15. HDMI receiver DC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 16. HDMI receiver AC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 17. HDMI transmitter (DP++) DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 18. HDMI transmitter AC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 19. Crystal specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 20. I2C interface timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 21. SPI interface timing, VDD = 3.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Table 22. Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table 23. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 6 of 39
List of Figures
Figure 1. STDP4320 in video hub application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 2. STDP4320 in 4K2K TV application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 3. STDP4320 BGA diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 4. Package drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 5. Package dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 6. Marking template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 7. HDMI and DVI receiver AC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 8. I2C timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 9. SPI input timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 10. SPI output timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 7 of 39
1. Description
The STDP4320 is a high-speed DisplayPort dual mode splitter IC targeted for audio-video de-
multiplexing and routing in applications such as notebooks, docking stations, video hub, 4K2K TVs, daisy
chainable monitors, digital signage, etc. It consists of one dual mode input port and two dual mode output
ports configurable as either DisplayPort or HDMI/DVI. STDP4320 is a VESA DP Standard Ver. 1.2a
compliant device that supports advanced features such as MST, HBR2, 3D formats and GTC assist.
Designs based on STDP4320 have the flexibility to offer either DP or HDMI/DVI connectors on its end
product to interface with legacy and new generation video sources and sinks. In addition, STDP4320-
based products with a DisplayPort output connector are DP++ compliant and work with any HDMI or
single link DVI sink through a passive level translator (dongle).
The STDP4320 uses MegaChips’ latest generation DisplayPort dual mode receiver and transmitter
technology that supports both DisplayPort and TMDS signal formats. This device receives MST format
up to eight audio-video streams, which can be further routed on either of the two outputs in any
combination of eight streams depending on the capability of downstream sinks. This device can also
replicate the incoming video streams on both output ports simultaneously, thus allowing cloning on two
downstream sinks. For example, a 4K2K 60 Hz video input is replicated on two output ports
simultaneously. The DisplayPort receiver and transmitters support HBR2 speed, a data rate of 5.4 Gbps
per lane with a total bandwidth of 21.6 Gbps link rate. In HDMI mode, this device supports link rates up to
3.2 Gbps corresponding to a pixel rate of 300 MHz, adequate for supporting video resolution up to FHD
120 Hz with all 3D formats. The device is also capable of delivering deep color video up to 16-bits per
color. The STDP4320 allows audio transport from the source to the desired audio rendering devices over
the video output port or through an SPDIF port.
The STDP4320 supports RGB and YCbCr colorimetric formats with color depth of 16, 12, 10, and 8 bits.
The STDP4320 features the HDCP 1.3 content protection scheme with embedded keys for secure
transmission of protected audio-video content. It also operates as an HDCP repeater for the downstream
sinks.
The DDC ports in the STDP4320 allow the upstream source to access EDID and transfer MCCS
commands to downstream sinks when the physical ports are either HDMI or DVI type. If both the
upstream source and downstream sinks are DP type, I2C transactions take place over the AUX CH. If
one of them is a DP type and the other is either a HDMI or DVI type, STDP4320 converts the I2C over
AUX message protocol to I2C commands and sends it on the DDC port.
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 8 of 39
The device has an on-chip microcontroller with SPI, UART, and I2C interface. The STDP4320 uses an
external SPI Flash ROM for storing device configuration firmware. It has an I2C slave port for external
host communication. Other system interface signals include general-purpose IO for source, sink
communication, detection, monitoring, etc. When the downstream sink is disconnected, STDP4320
automatically turns off the inactive port for power saving purposes.
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 10 of 39
3. Feature attributes
3.1 Input interface
• Single DP++ interface featuring
– DisplayPort Ver. 1.2a compliant receiver; supports eDP and MyDP
– HDMI 1.4 compliant receiver
• Main link configuration
– SST or MST (up to eight streams)
– HBR2/HBR/RBR link rate
– 1, 2, or 4 lanes
• AUX CH: 1 Mbps Manchester transaction format
• HPD: IRQ_HPD assertion
• Video: EDID 1.4 and CEA861 video timing and formats from 24 to 48 bits/pixel in RGB,
YCC422, or YCC444 colorimetry
• Audio: DisplayPort 1.2a standard info frame packets and IEC60958/61937 type audio stream
packets ranging from 16 to 24 bits/sample, 32 to 192 kHz sample rates
• HDMI link rate: 3.2 Gbps/data pair max
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 11 of 39
3.2 Output interface
• Two DP++ interfaces featuring
– AC coupled DisplayPort Ver. 1.2a compliant transmitter: supports eDP
– AC coupled HDMI 1.4 transmitter
• DP main link configuration
– SST or MST (up to eight streams)
– HBR2/HBR/RBR link rate
– 1, 2, or 4 lanes
• AUX CH: Manchester transaction format
• HPD: IRQ_HPD assertion
• Video: EDID 1.4 and CEA861 video timing and formats from 24 to 48 bits/pixel in RGB,
YCC422, or YCC444 colorimetry
• Audio: DisplayPort 1.2a standard info frame packets and IEC60958/61937 type audio stream
packets ranging from 16 to 24 bits/sample, 32 to 192 kHz sample rates
• HDMI link rate: 3.2 Gbps/data pair max
3.3 Supported video timings
• 4K2K 60 Hz: 24 bits/pixel in DP 1.2a configuration
• 1920 x 1080 (FHD) 240 Hz, 24 bits/pixel
• All 3D formats defined in DP 1.2a and HDMI 1.4 standards
• All standard CEA861 timing formats
3.4 Supported audio timings
• All audio formats as specified in DP 1.2a and HDMI 1.4 standards
• SPDIF; 2-Ch LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192 kHz (applicable
in DP SST/HDMI output use case)
3.5 Control channel interfaces
• AUX CH, DDC, I2C host interface, and UART (UART for test/debug purposes only)
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 12 of 39
3.6 HDCP 1.3 support
• Key sets for DP/HDMI RX and DP/HDMI TX integrated in one-time programmable ROM (OTP)
• Standalone HDCP repeater capability
3.7 Package
• 172 LFBGA (12 x 12 mm), 0.8 ball pitch
3.8 Power supply voltages
• 3.3 V I/O; 1.2 V core
3.9 ESD
• 2 KV HBM, 450 V CDM
MegaChips
n
n
c
n
:
Iunznun
r w m smijlm mm
mmmn Insrszl
E km u ““0"
n W: WWW? mm "Ann
m , ,
4 svux may vacxI am:
my”
“ I"
l
u
n
mums
m
nnuanJ
nun
cmm Gm" (m7
Insrmfi nslimuz mum:
gm um gm
Km. IASVER’IJI mmmz
7 gm gm
mum Immuz quuuz
up.
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 13 of 39
4. BGA footprint and pin lists
4.1 Ball grid array diagram
The ball grid array (BGA) diagrams give the allocation of pins to the package, shown from the top looking
down using the PCB footprint.
The STDP4320 is available in a 172-pin LFBGA package.
White = no ball at this location
n/c = no connect: ball present, but must not be connected
Figure 3. STDP4320 BGA diagram
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 14 of 39
4.2 Full pin list sorted by pin number
Table 1. Pin list
Pin number Net name
A1 VSS
A2 RX0_LN2_N
A5 RX0_LN0_P
A6 RX0_AUX_P
A7 RX0_AUX_N
A8, A9, A10, A13 n/c
A14 VSS
B1 RX0_LN3_P
B2 RX0_LN2_P
B5 RX0_LN0_N
B6, B7, B8, B9 VSS
B10, B13, B14 n/c
C1 RX0_LN3_N
C2 AVDD33_RX
C3 RX0_LN1_N
C4 RX0_LN1_P
C5, C6 AVDD12_RX
C7, C8 AVDD33_RX
C9, C10 AVDD12_RX
C11, C12 n/c
C13 AVDD33_RX
C14 n/c
D1 TX1_HPD
D2 TEST
D3, D4, D5 VSS
D6 RX0_REXT
D7, D8 VSS
D9 n/c
D10, D11, D12 VSS
D13 HDMI_TX0_DDC_SCL
D14 HDMI_TX0_DDC_SDA
E1 n/c
E2 SPDIF_OUT0
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 15 of 39
E3 HDMI_CEC
E4 TX0_HPD
E5 DVDD12
E10 DVDD12
E11 HDMI_TX1_DDC_SDA
E12 GPIO8
E13 GPIO6
E14 HDMI_TX1_DDC_SCL
F1 MASTER1_IRQ_IN
F2 GPO
F3 SPDIF_OUT1
F4 RX0_HPD
F5 DVDD12
F6, F7, F8, F9 VSS
F10 DVDD12
F11 GPIO9
F12 GPIO10
F13 GPIO11
F14 GPIO7
G1 MASTER2_IRQ_IN
G2 MASTER3_IRQ_IN
G3 GPIO13/TX1_CONFIG2
G4 MASTER0_IRQ_IN
G5 DVDD12
G6, G7, G8, G9 VSS
G10 DVDD12
G11 MASTER2_I2C_SDA
G12 MASTER2_I2C_SCL
G13 MASTER0_I2C_SDA
G14 MASTER0_I2C_SCL
H1 GPIO12/TX1_CONFIG1
H2 HOST_IRQ_OUT
H3 SPI_CLK
H4 UART_TX
H5 DVDD12
Table 1. Pin list (continued)
Pin number Net name
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 16 of 39
H6, H7, H8, H9 VSS
H10 DVDD12
H11 HDMI_RX0_DDC_SCL
H12 RESETn
H13 MASTER1_I2C_SDA
H14 MASTER1_I2C_SCL
J1 SPI_DI
J2 UART_RX
J3 SPI_CSN
J4 GPIO2
J5 DVDD33
J6, J7, J8, J9 VSS
J10 DVDD33
J11 n/c
J12 HOST_I2C_SCL
J13 MASTER3_I2C_SCL
J14 MASTER3_I2C_SDA
K1 TCLK_3V3_OUT
K2 SPI_DO
K3 GPIO0/TX0_CONFIG1
K4 GPIO1/TX0_CONFIG2
K5 DVDD25_SM
K10 GPIO5
K11 n/c
K12 HDMI_RX0_DDC_SDA
K13 AVDD12_PLL
K14 HOST_I2C_SDA
L1 TCLK_1V2_OUT
L2 TX0_REXT
L3, L4 VSS
L5 GPIO3/RX0_CABLE_DET0
L6, L7, L8, L9 VSS
L10 GPIO4/RX0_CABLE_DET1
L11, L12 VSS
L13 AVDD12_OSC1
Table 1. Pin list (continued)
Pin number Net name
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 17 of 39
L14 AVDD33_RCOSC
M1 TX0_AUX_N
M2 AVDD12_TX0
M3 TX0_LN2_N
M4 TX0_LN2_P
M5 AVDD12_TX0
M6 AVDD12_OSC0
M7, M8 VSS
M9 TX1_REXT
M10 AVDD12_TX1
M11 TX1_LN2_N
M12 TX1_LN2_P
M13 AVDD33_TX1
M14 TX1_LN0_P
N1 TX0_AUX_P
N2 TX0_LN3_P
N5 TX0_LN1_N
N6 AVDD33_TX0
N7 TCLK
N8 XTAL
N9 AVDD12_TX1
N10 TX1_LN3_P
N13 TX1_LN1_N
N14 TX1_LN0_N
P1 VSS
P2 TX0_LN3_N
P5 TX0_LN1_P
P6 TX0_LN0_N
P7 TX0_LN0_P
P8 TX1_AUX_N
P9 TX1_AUX_P
P10 TX1_LN3_N
P13 TX1_LN1_P
P14 VSS
Table 1. Pin list (continued)
Pin number Net name
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 18 of 39
5. Connections
5.1 Pin list
I/O Legend: I = Input; O = Output; P = Power; G = Ground; IO = Bi-direction; AI = Analog input; AO =
Analog output; AIO = Analog I/O; TRI = Tristate; TOL = Tolerance; PD = Internal 50K pulldown; PU =
Internal 50K pull-up; OPENDR = Open drain output
Note: Some pins can have multiple functionalities, which are configured under register control.
The alternate functionality for each pin is listed in the Description column.
Note: The default DP and HDMI input signals mapping match the standard DP and HDMI
connector pin mapping. However, lane swapping and polarity swapping are possible
through software configuration.
Table 2. DisplayPort receiver pins
Pin Assignment I/O Description Reset state
D6 RX0_REXT AIO, 3V3
TOL Connect to External 249 Ohm Resistor to VDD33 NA
A5 RX0_LN0_P AIO, 3V3
TOL DUAL MODE RX HDMI CLOCKP OR DP RX_LN0P. TRISTATE
B5 RX0_LN0_N AIO, 3V3
TOL DUAL MODE RX HDMI CLOCKN OR DP RX_LN0N. TRISTATE
C4 RX0_LN1_P AIO, 3V3
TOL DUAL MODE RX HDMI RX0P OR DP RX_LN1P. TRISTATE
C3 RX0_LN1_N AIO, 3V3
TOL DUAL MODE RX HDMI RX0N OR DP RX_LN1N. TRISTATE
B2 RX0_LN2_P AIO, 3V3
TOL DUAL MODE RX HDMI RX1P OR DP RX_LN2P. TRISTATE
A2 RX0_LN2_N AIO, 3V3
TOL DUAL MODE RX HDMI RX1N OR DP RX_LN2N. TRISTATE
B1 RX0_LN3_P AIO, 3V3
TOL DUAL MODE RX HDMI RX2P OR DP RX_LN3P. TRISTATE
C1 RX0_LN3_N AIO, 3V3
TOL DUAL MODE RX HDMI RX2N OR DP RX_LN3N. TRISTATE
A6 RX0_AUX_P AIO, 1V2
TOL
DUAL MODE RX DP RX_AUXP. AC Couple 0.1uF.
Use 20 Ohm damping resistor in series and 1M Ohm
pull up to 3.3 V before cap. TRISTATE
A7 RX0_AUX_N AIO, 1V2
TOL
DUAL MODE RX DP RX_AUXN. AC Couple 0.1uF.
Use 20 Ohm damping resistor in series and 1M Ohm
pull down to GND before cap. TRISTATE
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 19 of 39
Table 3. System function pins
Pin Assignment I/O Description Reset state
D2 TEST I, 3V3 TOL,
INT PD Connect to GND INPUT,
Internal PD
N7 TCLK AIO, 1V2
TOL
Connect to 27 MHz crystal oscillator with 22 pF to
1.2 V. NA
N8 XTAL
K1 TCLK_3V3_OUT IO, 3V3 TOL TCLK output, Tristate 3.3 V pad TRISTATE
L1 TCLK_1V2_OUT IO, 1V2 TOL TCLK output, Tristate 1.2 V pad TRISTATE
H12 RESETn AIO, 3V3
TOL Use external 3K ohm resistor to 3.3 V TRISTATE,
INPUT
J3 SPI_CSN IO, 3V3 TOL,
TRI, INT PU To SPI chip select. Also see Table 8: Bootstrap
configuration.TRISTATE,
Internal PU
K2 SPI_DO IO, 3V3 TOL,
TRI, INT PD To SPI data out. Also see Table 8: Bootstrap
configuration.TRISTATE,
Internal PD
J1 SPI_DI I, 3V3 TOL,
INT PD From SPI data in. INPUT with
Internal PD
H3 SPI_CLK IO, 3V3 TOL,
TRI, INT PD To SPI clock. Also see Table 8: Bootstrap
configuration.TRISTATE,
Internal PD
Table 4. Multi-function pins
Pin Assignment I/O Description Reset state
E3 HDMI_CEC
IO, 3.3 TOL,
TRI
HDMI CEC not supported in the current silicon
rev. Connect this pin to external pull-up
DVDD3V3. TRISTATE
F4 RX0_HPD To the upstream HPD signal pin on the DP
connector. 100K res to GND. TRISTATE
L5 GPIO3/
RX0_CABLE_DET0 Cable detect1 for DisplayPort connector TRISTATE
L10 GPIO4/
RX0_CABLE_DET1 Cable detect2 for DisplayPort connector TRISTATE
K12 HDMI_RX0_DDC_SDA DDC SDA for upstream HDMI port0. Use external
pull up 4.7 K to 3.3 V when used. Else leave as
NC. TRISTATE
H11 HDMI_RX0_DDC_SCL DDC SCL for upstream HDMI port0. Use external
pull up 4.7 K to 3.3 V when used. Else leave as
NC. TRISTATE
E2 SPDIF_OUT0 IO, 3.3 TOL,
TRI, INT PU
To external buffer for SPDIF output [Audio
corresponding to video on Port0] TRISTATE,
Internal PU
F3 SPDIF_OUT1 To external buffer for SPDIF output [Audio
corresponding to video on Port1] TRISTATE,
Internal PU
MegaChips
—
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 20 of 39
E4 TX0_HPD
IO, 3.3 TOL,
TRI
HPD in for Downstream DP/HDMI port0 TRISTATE
J4 GPIO2 General Purpose input/output, Tristate 3.3 V pad TRISTATE
D14 HDMI_TX0_DDC_SDA DDC SDA for downstream HDMI port0. Use
external pull up 4.7 K to 3.3 V when used. Else
leave as NC. TRISTATE
D13 HDMI_TX0_DDC_SCL DDC SCL for downstream HDMI port0. Use
external pull up 4.7 K to 3.3 V when used. Else
leave as NC. TRISTATE
K3 GPIO0/TX0_CONFIG1 Config1 input for Downstream DP port0 or GPIO TRISTATE
K4 GPIO1/TX0_CONFIG2 Config2 input for Downstream DP port0 or GPIO TRISTATE
D1 TX1_HPD HPD in for Downstream DP/HDMI port1 TRISTATE
K10 GPIO5 General Purpose input/output, Tristate 3.3 V pad TRISTATE
E11 HDMI_TX1_DDC_SDA
IO, 3.3 TOL,
TRI
DDC SDA for downstream HDMI port1. Use
external pull up 4.7 K to 3.3 V when used. Else
leave as NC. TRISTATE
E14 HDMI_TX1_DDC_SCL DDC SCL for downstream HDMI port1 . Use
external pull up 4.7 K to 3.3 V when used. Else
leave as NC. TRISTATE
H1 GPIO12/
TX1_CONFIG1 Config1 input for Downstream DP port1 or GPIO TRISTATE
G3 GPIO13/
TX1_CONFIG2 Config2 input for Downstream DP port1 or GPIO TRISTATE
H4 UART_TX IO, 3.3 TOL,
TRI, INT PU To debug port UART_TX. Also see Table 8:
Bootstrap configuration.TRI, Internal
PU
J2 UART_RX
IO, 3.3 TOL,
TRI
To debug port UART_RX TRISTATE
G14 MASTER0_I2C_SCL Master I2C SCL Port0. Connect to I2C Slave with
external Pull Up TRISTATE
G13 MASTER0_I2C_SDA Master I2C SDA Port0. Connect to I2C Slave with
external Pull Up TRISTATE
G4 MASTER0_IRQ_IN IO, 3.3 TOL,
TRI, INT PD Master I2C Port0 interrupt input. Connect to I2C
Slave interrupt out TRISTATE,
Internal PD
H14 MASTER1_I2C_SCL IO, 3.3 TOL,
TRI
Master I2C SCL Port1. Connect to I2C Slave with
external Pull Up TRISTATE
H13 MASTER1_I2C_SDA Master I2C SDA Port1. Connect to I2C Slave with
external Pull Up TRISTATE
F1 MASTER1_IRQ_IN IO, 3.3 TOL,
TRI, INT PD Master I2C Port01interrupt input. Connect to I2C
Slave interrupt out TRISTATE,
Internal PD
G12 MASTER2_I2C_SCL IO, 3.3 TOL,
TRI
Master I2C SCL Port2. Connect to I2C Slave with
external Pull Up TRISTATE
G11 MASTER2_I2C_SDA Master I2C SDA Port2. Connect to I2C Slave with
external Pull Up TRISTATE
Table 4. Multi-function pins
Pin Assignment I/O Description Reset state
MegaChips
—
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 21 of 39
G1 MASTER2_IRQ_IN IO, 3.3 TOL,
TRI, INT PD Master I2C Port2 interrupt input. Connect to I2C
Slave interrupt out TRISTATE,
Internal PD
J13 MASTER3_I2C_SCL IO, 3.3 TOL,
TRI
Master I2C SCL Port3. Connect to I2C Slave with
external Pull Up TRISTATE,
J14 MASTER3_I2C_SDA Master I2C SDA Port3. Connect to I2C Slave with
external Pull Up TRISTATE,
G2 MASTER3_IRQ_IN IO, 3.3 TOL,
TRI, INT PD Master I2C Port3 interrupt input. Connect to I2C
Slave interrupt out TRISTATE,
Internal PD
J12 HOST_I2C_SCL IO, 3.3 TOL,
TRI
Slave I2C SCL. Connect to I2C Master with
external Pull Up TRISTATE
K14 HOST_I2C_SDA Slave I2C SDA. Connect to I2C Master with
external Pull Up TRISTATE
H2 HOST_IRQ_OUT IO, 3.3 TOL,
TRI, INT PD Interrupt out. Connect to interrupt in of Master TRISTATE,
Internal PD
E13 GPIO6 IO, 3.3 TOL,
TRI
General purpose input/output TRISTATE
F14 GPIO7 IO, 3.3 TOL,
TRI
E12 GPIO8 IO, 3.3 TOL,
TRI
F11 GPIO9 IO, 3.3 TOL,
TRI
F12 GPIO10 IO, 3.3 TOL,
TRI
F13 GPIO11 IO, 3.3 TOL,
TRI
F2 GPO IO, 3.3 TOL,
TRI, INT PD General purpose input/output. See Table 8:
Bootstrap configuration.TRISTATE,
Internal PD
Table 4. Multi-function pins
Pin Assignment I/O Description Reset state
Table 5. Transmitter pins
Pin Assignment I/O Description Reset state
L2 TX0_REXT AI, 1V2 TOL TX, EXTERNAL 249 Ohm RESISTOR TO VDD12 NA
N1 TX0_AUX_P AIO, 1V2 TOL DUAL MODE TX Port0 DP TX_AUXP. AC Couple to
TX Connector. External 100K Resistor to GND. TRISTATE
M1 TX0_AUX_N AIO, 1V2 TOL DUAL MODE TX Port0 DP TX_AUXN. AC Couple to
TX Connector. External 100K Resistor to VDD33. TRISTATE
N2 TX0_LN3_P AO, 1V2 TOL DUAL MODE TX Port0 HDMI TXCKP OR DP
TX_LN3P. AC Couple to TX Connector. TRISTATE
P2 TX0_LN3_N AO, 1V2 TOL DUAL MODE TX Port0 HDMI TXCKN OR DP
TX_LN3N. AC Couple to TX Connector TRISTATE
M4 TX0_LN2_P AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX2P OR DP
TX_LN2P. AC Couple to TX Connector TRISTATE
MegaChips
—
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 22 of 39
M3 TX0_LN2_N AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX2N OR DP
TX_LN2N. AC Couple to TX Connector TRISTATE
P5 TX0_LN1_P AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX1P OR DP
TX_LN1P. AC Couple to TX Connector TRISTATE
N5 TX0_LN1_N AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX1N OR DP
TX_LN1N. AC Couple to TX Connector TRISTATE
P7 TX0_LN0_P AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX0P OR DP
TX_LN1P. AC Couple to TX Connector TRISTATE
P6 TX0_LN0_N AO, 1V2 TOL DUAL MODE TX Port0 HDMI TX0N OR DP
TX_LN1N. AC Couple to TX Connector TRISTATE
M9 TX1_REXT AI, 1V2 TOL TX, EXTERNAL 249 Ohm RESISTOR TO VDD12 NA
P9 TX1_AUX_P AO, 1V2 TOL DUAL MODE TX Port1 DP TX_AUXP. AC Couple to
TX Connector. External 100K Resistor to GND. TRISTATE
P8 TX1_AUX_N AO, 1V2 TOL DUAL MODE TX Port1 DP TX_AUXN. AC Couple
to TX Connector. External 100K Resistor to VDD33. TRISTATE
N10 TX1_LN3_P AO, 1V2 TOL DUAL MODE TX Port1 HDMI TXCKP OR DP
TX_LN3P. AC Couple to TX Connector. TRISTATE
P10 TX1_LN3_N AO, 1V2 TOL DUAL MODE TX Port1 HDMI TXCKN OR DP
TX_LN3N. AC Couple to TX Connector TRISTATE
M12 TX1_LN2_P AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX2P OR DP
TX_LN2P. AC Couple to TX Connector TRISTATE
M11 TX1_LN2_N AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX2N OR DP
TX_LN2N. AC Couple to TX Connector TRISTATE
P13 TX1_LN1_P AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX1P OR DP
TX_LN1N. AC Couple to TX Connector TRISTATE
N13 TX1_LN1_N AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX1N OR DP
TX_LN1N. AC Couple to TX Connector TRISTATE
M14 TX1_LN0_P AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX0P OR DP
TX_LN1P. AC Couple to TX Connector TRISTATE
N14 TX1_LN0_N AO, 1V2 TOL DUAL MODE TX Port1 HDMI TX0N OR DP
TX_LN1N. AC Couple to TX Connector TRISTATE
Table 5. Transmitter pins
Pin Assignment I/O Description Reset state
Table 6. System power and ground
Pin Assignment Description
J5, J10 DVDD33 I/O VDD, 3.3V digital supply. De-couple using 100 nF.
E5, E10, F5, F10, G5,
G10, H5, H10 DVDD12 Core VDD, 1.2V digital supply. De-couple using 100 nF.
L14 AVDD33_RCOSC 3.3V RC-oscillator analog supply. De-couple using 100 nF.
K13 AVDD12_PLL 1.2V analog PLL supply. De-couple using 10 uF and 100 nF.
C5, C6, C9, C10 AVDD12_RX 1.2V analog receiver supply. EMI filter rail and de-couple using 10
uF and 100 nF.
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 23 of 39
5.2 Bootstrap configuration
DC levels on some of the pins are specified during de-asserting edge of power-on reset (RESETn goes
high). The levels specified below must be adhered for normal function of the device.
Table 8. Bootstrap configuration
C2, C7, C8, C13 AVDD33_RX 3.3V analog receiver supply. EMI filter rail and de-couple using 10
uF and 100 nF.
N6 AVDD33_TX0 3.3V analog transmitter supply. EMI filter rail and de-couple using 10
uF and 100 nF.
M13 AVDD33_TX1 3.3V analog transmitter supply. EMI filter rail and de-couple using 10
uF and 100 nF.
M2, M5 AVDD12_TX0 1.2V analog transmitter supply. EMI filter rail and de-couple using 10
uF and 100 nF.
M10, N9 AVDD12_TX1 1.2V analog transmitter supply. EMI filter rail and de-couple using 10
uF and 100 nF.
M6 AVDD12_OSC0 1.2V analog crystal oscillator supply. De-couple using 100 nF.
L13 AVDD12_OSC1 1.2V analog crystal oscillator supply. De-couple using 100 nF.
K5 DVDD25_SM 2.5V LDO supply. De-couple using 10 uF and 100 nF.
A1, A14, B6, B7, B8,
B9, D3, D4, D5, D7, D8,
D10, D11, D12, F6, F7,
F8, F9, G6, G7, G8, G9,
H6, H7, H8, H9, J6, J7,
J8, J9, L3, L4, L6, L7,
L8, L9, L11, L12, M7,
M8, P1, P14
VSS Common GND. Connect to GND plane
Table 6. System power and ground
Pin Assignment Description
Table 7. Reserved pins
Pin Assignment Description
A8, A9, A10, A13, B10,
B13, B14, C11, C12,
C14, D9, E1, J11, K11 n/c Reserved. Do not connect
Bootstrap signal
name Internal PU/PD Pin assignment Function
Bootstrap_0 PULLUP UART_TX (H4) 0: Reserved for ATE Test
1: Normal Operation (Recommended)
Bootstrap_1 PULLDN GPO (F2)
0: Crystal_OSC is enabled
(Recommended)
1: RC_OSC is enabled,
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 24 of 39
Note: When the pin corresponding to a specific bootstrap is left NC, it takes the value of the
assigned by the internal PULLUP (Level 1) or PULLDN (Level0). The internal resistor used
is around 50 k ohm. To select a non-default value on a bootstrap, an external PULLUP or
PULLDN resistor is tied to the opposite direction that overcomes the internal PULLUP or
PULLDN needs to be used.
Bootstrap_2 PULLDN SPI_CLK (H3)
0: OCM boot up from internal ROM
(Recommended)
1: OCM boot up from external ROM
Bootstrap_3 PULLDN SPI_DO (K2) 0: Reserved for Testing (Recommended)
1: Reserved for Testing
Bootstrap_4 PULLUP SPDIF_OUT0 (E2)
0: Select External OSC Operation
1: Select Internal OSC Operation
(Recommended)
Bootstrap_5 PULLUP SPI_CSN (J3) 0: Debug Mode
1: Normal Operation (Recommended)
Bootstrap_6 PULLUP SPDIF_OUT1 (F3)
0: Software Bootstrap for I2C address
selection
1: Software Bootstrap for I2C address
selection
Bootstrap_7 PULLDN HOST_IRQ_OUT (H2)
0: Software Bootstrap for I2C address
selection
1: Software Bootstrap for I2C address
selection
Bootstrap signal
name Internal PU/PD Pin assignment Function
MegaChips
EATING
PLANE
5mm
Al 00mm INDEX AREA
Al
000000 0
00 000000 00
00000000000000
00000000000000
00000 00000
00000000000000
DI
p
N
M
L
K
J
H
G
F
E
D
C
B
A
(52: ms] ”mg, a A IEI
om® c
B© Bonou wm
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 25 of 39
6. Package specifications
Package type: 172 LFBGA (12 x 12 mm / ball pitch 0.8 mm)
6.1 Package drawing

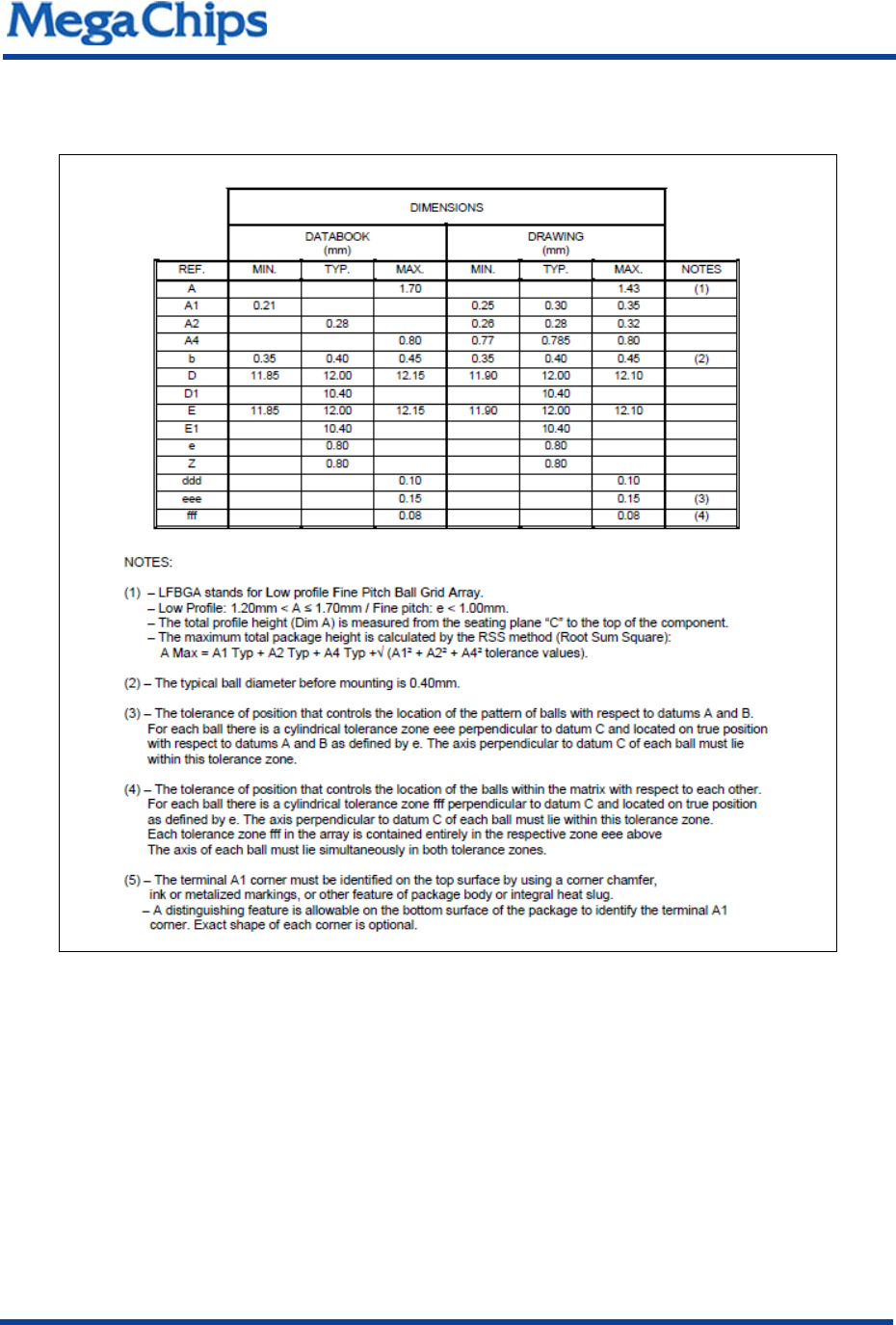

Figure 4. Package drawing
MegaChips
:I: In U n
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 27 of 39
6.3 Marking field template and descriptors
The STDP4320 marking template is shown below.
Figure 6. Marking template
Field descriptors are shown below.
6.4 Classification reflow profile
Please refer to the DisplayPort Application Note: Classification reflow profile for SMD
devices (C0353-APN-06) for reflow diagram and details.
Table 9.Field descriptors
Field Description Marking
A Standard MegaChips logo M
B 2-character version code BA
C Product code STDP4320
D Optional marking <blank>
E 2-character assembly plant code 22
F 3-character BE sequence code “XYZ”
G 2-character diffusion plant code VQ
H 3-character country of origin code MLT
I 2-character test plant code 22
J 1-digit assembly year “Y”
K 2-digit assembly week “WW”
L Ball A1 identifier a DOT
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 28 of 39
7. Electrical specifications
7.1 Preliminary DC characteristics: absolute maximum ratings
Applied conditions greater than those listed under “Absolute maximum ratings” may cause permanent
damage to the device. The device should never exceed absolute maximum conditions since it may affect
device reliability.
Note (1): All voltages are measured with respect to GND.
Note (2): Absolute maximum voltage ranges are for transient voltage excursions.
7.2 DC characteristics
Table 10. Absolute maximum ratings
Parameter Symbol Min Typ Max Units
3.3 V supply voltages (1,2) VVDD_3.3 -0.3 3.3 3.63 V
1.2 V supply voltages (1.2) VVDD_1.2 -0.3 1.2 1.26 V
Input voltage for tolerance for 5 V I/O pin(1,2) VIN5Vtol -0.3 - 5.5 V
Input voltage tolerance for 3.3 V I/O pin(1,2) VIN3V3tol -0.3 - 3.63 V
ESD - Human Body Model (HBM) VESD -- ±2kV
ESD - Charged Device Model (CDM) VESD --±450V
Latch-up ILA --±200 mA
Ambient operating temperature TA0- 70°C
Storage temperature TSTG -40 - 125 °C
Operating junction temperature TJ0 - 125 °C
Thermal resistance (Junction to Ambient) θJA - 36.5 - °C/W
PSI (J-C) (Junction to Case) ψJC -1.6-°C/W
Peak IR reflow soldering temperature (<10 sec.) TSOL - - 260 °C
Table 11. DC characteristics
Parameter Symbol Min Typ Max(1) Units
Power
3.3 V supply voltages (analog and digital) VVDD_3.3 3.14 3.3 3.47 V
1.2 V supply voltages (analog and digital) VVDD_1.2 1.14 1.2 1.26 V
Power
Measurement conditions:
4K x 2K / 60 Hz MST (2K x 2K, two streams)
Test pattern: ON-OFF dot
914 mW
MegaChips
I III
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 29 of 39
Note: The values in the Max column represent absolute maximum current consumption under
high voltage (+5%) and nominal temperature. These values are measured in an
environment that includes some discreet components. Other conditions include: a) Power
measurement values are to be used for regulator sizing only, and not directly for package
thermal calculations. b) IC performance is only guaranteed when operating within the “DC
Characteristics”. c) All inputs are 3.3 V tolerant.
7.3 AC characteristics
Sleep mode 30 mW
Supply current
Measurement conditions:
4K x 2K / 60 Hz MST (2K x 2K, two streams)
Test pattern: ON-OFF dot Moire
In all configurations, 8 bits output is used
--
mA
VDD (analog and digital power) = 3.3 V 58
VDD (analog and digital power) = 1.2 V 565
Inputs
High voltage VIH 2.0 - - V
Low voltage VIL --0.8V
Input hysteresis voltage VHYST 300 - - mV
High current (VIN = 3.3 V) IIH --±10μA
Low current (VIN = 0 V) IIL --±10μA
Capacitance (VIN = 2.4 V) CIN --5pF
Outputs
High voltage (IOH = 8 mA) VOH 2.4 - - V
Low voltage (IOL = -8 mA) VOL --0.4V
Tri-state leakage current IOZ --±10μA
Table 11. DC characteristics
Parameter Symbol Min Typ Max(1) Units
Table 12. Maximum speed of operation
Clock domain Max speed of operation
Reference Input Clock (TCLK) 27 MHz
Reference Internal Clock (RCLK) 324 MHz
On-Chip Microcontroller Clock (OCLK) 150 MHz
SPDIF audio output 192 kHz
2-Wire Serial Slave (SLAVE_SCL) 400 kHz
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 30 of 39
7.3.1 DisplayPort receiver
2-Wire DDC2bi Slave (HDMI_SCL) 400 kHz
2-Wire Serial Master (MSTRx_SCL) 400 kHz
Table 12. Maximum speed of operation
Table 13. DisplayPort receiver electrical parameters
Parameter Symbol Min Typ Max Units Comments
DisplayPort receiver system parameters
HBR2 unit interval
(5.4 Gbps) UI_HBR2 - 185 - ps
DisplayPort link RX
does not require local
crystal for link clock
generation
HBR unit interval
(2.7 Gbps) UI_HBR - 370 - ps
RBR unit interval
(1.62 Gbps) UI_RBR - 617 - ps
Link clock down
spreading Down spread
amplitude 0-0.5%
Modulation frequency
range 0f 30 kHz to
33 kHz
DisplayPort receiver TP3 parameters
Minimum receiver eye
width at Rx-side
connector pins TRX-EYE_CONN 0.25 - - UI For RBR
Lane intra-pair skew
tolerance
LRX-
SKEW_INTRA_PA
IR_HBR2
--50
ps
For HBR2. Represents
the skew contribution
from the cable in
addition to the stressed
EYE at TP3_EQ.
Lane intra-pair skew
tolerance
LRX-
SKEW_INTRA_PA
IR_HBR
--60
ps
For HBR. Represents
the skew contribution
from the cable in
addition to the stressed
EYE at TP3.
Lane intra-pair skew
tolerance
LRX-
SKEW_INTRA_PA
IR_RBR
- - 260
ps
For RBR. Represents
the skew contribution
from the cable in
addition to the stressed
EYE at TP3.
Jitter closed loop
tracking bandwidth FRX-TRACKING-
BW_RBR 5.4 - -
MHz
Minimum CDR closed
loop tracking
bandwidth at the
receiver when the input
is a PRBS7 pattern
Jitter closed loop
tracking bandwidth FRX-TRACKING-
BW_HBR
10 -- MHz
Minimum CDR closed
loop tracking
bandwidth at the
receiver when the input
is a PRBS7 pattern
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 31 of 39
7.3.2 DisplayPort transmitter
Jitter closed loop
tracking bandwidth FRX-TRACKING-
BW_HBR2 10 - - MHz
Minimum CDR closed
loop tracking
bandwidth at the
receiver when the input
is a PRBS7 pattern
DisplayPort receiver TP3_EQ parameters
Minimum receiver eye
width TRX-
TJ_8b10b_HBR2 0.38 - - UI
For HBR2. Measured
at 1E-9 BER using
HBR2 Compliance
EYE pattern.
RX differential peak-to-
peak EYE voltage TRX-DIFFp-
p_HBR2 90 - - mV
For HBR2. Measured
at 1E-9 BER using
HBR2 compliance EYE
pattern.
Table 13. DisplayPort receiver electrical parameters
Parameter Symbol Min Typ Max Units Comments
Table 14. DisplayPort transmitter electrical parameters
Parameter Symbol Min Typ Max Units Comments
DisplayPort transmitter system parameters
HBR2 unit interval
(5.4Gbps) UI_HBR2 - 185 - ps Frequency high limit
= +300ppm
Frequency low limit
=5300ppm
HBR unit interval
(2.7Gbps) UI_HBR - 370 - ps
RBR unit interval
(1.62Gbps) UI_RBR - 617 - ps
Link clock down
spreading Down spread
amplitude 0-0.5%
Modulation frequency
range 0f 30 kHz to
33 kHz
DisplayPort transmitter TP2 parameters
Ratio of output voltage
level 1/level 0
VTX-
OUTPUT_RATION
_RBR_HBR
0.8 - 6.0 dB Measured on non-
transition bits at pre-
emphasis level 0
setting
Ratio of output voltage
level 2/level 1 0.1 - 5.1
dB
Ratio of Output Voltage
level 3/level 2 0.8 - 6.0
dB
MegaChips
—
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 32 of 39
Ratio of output voltage
level 1/level 0
VTX-
OUTPUT_RATION
_RBR_HBR2
5.2 6.9
dB
Measured on non-
transition bits at pre-
emphasis level 0
setting
Ratio of Output Voltage
level 2/level 1 1.6 3.5
Ratio of output voltage
level 3/level 2 14.4
Maximum pre-
emphasis when
disabled
vTX-PREEMP-
OFF 0.25 dB
Max output voltage
level vTX-DIFFp-p-MAX 1.2 V
Lane-to-lane output
skew
LTX-SKEW-
INTER_PAIR_HBR
_RBR
2UI
Applied to all pairwise
combinations of
supported lanes.
Lane-to-lane output
skew
LTX-SKEW-
INTER_PAIR_HBR
2
4 UI + 500
ps
Applied to all pairwise
combinations of
supported lanes.
Lane intra-pair output
skew LTX-SKEW-
INTRA_PAIR 30 ps Applies to all support
lanes.
Delta of pre-emphasis
level 1 vs. level 0
VTX-PREEMP-
DELTA
2dB
Applied to all valid
voltage settings. No
Pre-emphasis Post
Cursor2 applied.
Delta of pre-emphasis
level 2 vs. level 1 1.6 dB
Delta of pre-emphasis
level 3 vs. level 2 1.6 dB
Non-transition
reduction output
voltage level 2
VTX-
DIFF_REDUCTIO
N
3dB
VTx_DIFF at each non-
zero nominal pre-
emphasis level must
not be lower than the
specific amount less
than VTx_DIFF at the
zero nominal pre-
emphasis level.
Modulation frequency
range 0f 30 kHz to 33
kHz
Non-transition
reduction output
voltage level 1 3dB
Non-transition
reduction output
voltage level 0 1.4 dB
DisplayPort transmitter TP3_EQ parameters
Maximum TX total jitter TTX-
TJ_8b10b_HBR2 0.62 UI For HBR2. Measured
at 1E-9 BER using
HBR2 compliance EYE
pattern.
Maximum TX
deterministic Jjtter TTX-
DJ_8b10b_HBR2 0.49 UI
Table 14. DisplayPort transmitter electrical parameters
Parameter Symbol Min Typ Max Units Comments
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 33 of 39
7.3.3 HDMI receiver

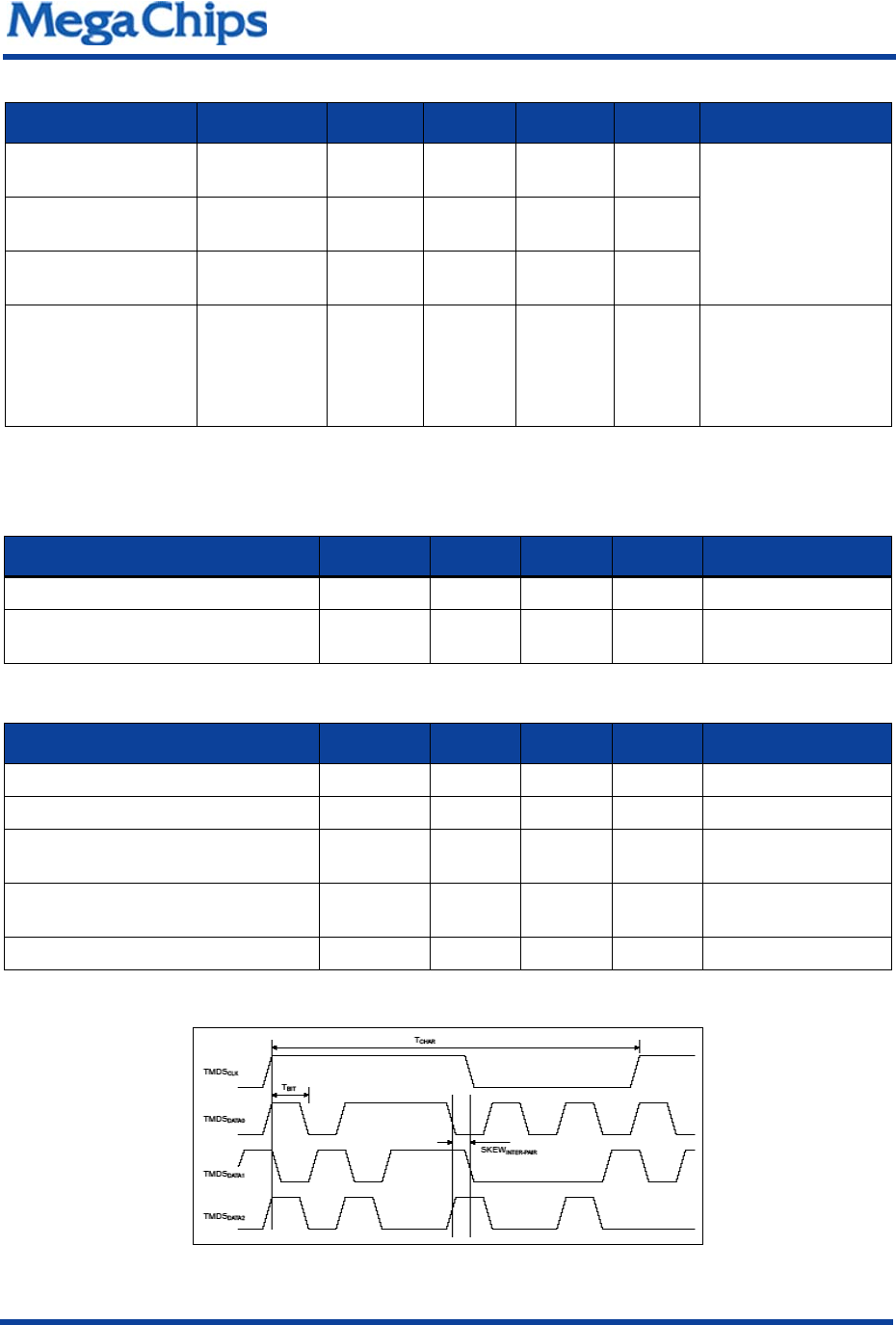

Figure 7. HDMI and DVI receiver AC characteristics
Maximum TX total jitter TTX-
TJ_D10.2_HBR2 0.4 UI
For HBR2. Measured
at 1E-9 BER using
D10.2 compliance
pattern.
Maximum TX
deterministic jitter TTX-
DJ_D10.2_HBR2 0.25 UI
Maximum TX random
jitter TTX-
RJ_D10.2_HBR2 0.23 UI
TX Differential reak-to-
peak EYE voltage TTX-DIFFp-
p_HBR2 110 mV For HBR2. Measured
at 1E-9 BER using
HBR2 compliance EYE
pattern.
Table 14. DisplayPort transmitter electrical parameters
Parameter Symbol Min Typ Max Units Comments
Table 15. HDMI receiver DC characteristics
DC characteristics Min Typ Max Units Comments
Input Differential Voltage Level 150 1200 mV
Input Common Mode Voltage,Vicm1 AVcc-400
mV AVcc-37.5
mV
Table 16. HDMI receiver AC characteristics
AC characteristics Min Typ Max Units Comments
Input clock frequency 25 297 MHz
Differential input (peak-to-peak) 150 1560 mV
Intra-pair skew tolerance 0.4 Tbit TMDS clock rates
222.75 MHz and below
Inter-pair skew tolerance 0.2Tbit +
112 ps ps TMDS clock rates
above 222.75 MHz
Input clock jitter tolerance 0.3 Tbit
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 34 of 39
7.3.4 HDMI transmitter
7.3.5 Crystal specification
Mode: fundamental
7.3.6 I2C interface timing
Table 17. HDMI transmitter (DP++) DC characteristics
DC characteristics Min Typ Max Units Comments
Single-ended output voltage 400 500 mV
Single-ended high level output voltage,
VHAVDD AVDD=1.2 volt
Single-ended low level output voltage,
VL
AVDD
-500 mV AVDD=1.2 volt
Table 18. HDMI transmitter AC characteristics
DC characteristics Min Typ Max Units Comments
Intra-pair skew at source connector,
max --0.15T
bit
Intra-pair skew at source connector,
max --0.2 T
character
TMDS differential clock jitter,max - - 0.25 Tbit
Rise time/fall time 75 - - ps
Table 19. Crystal specifications
Parameters Min Typ Max Units Comments
Nominal frequency - 27 - MHz
Tolerance - ± 50 - ppm
Load capacitance - 22 - pF
ESR (effective series resistance) - - 40 Ohm
Drive level - - 100 uW
Shunt capacitance - 7 - pF
Table 20. I2C interface timing
Symbol Parameter Conditions Min Measured Max Unit
fSCL SCL clock rate Fast mode 0 393 400 kHz
tHD-STA Hold time START After this period, the 1st clock
starts 0.6 0.95 - μs
tLOW Low period of clock SCL 1.3 1.1 - μs
tHIGH High period of clock SCL 0.6 0.75 - μs
MegaChips
—
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 35 of 39
Note: The maximum tHD;DAT only has to be met if the device does not stretch the low period tLOW
of the SCL signal. In the diagram below, S = start, P = stop, Sr = Repeated start, and SP=
Repeated stop conditions.

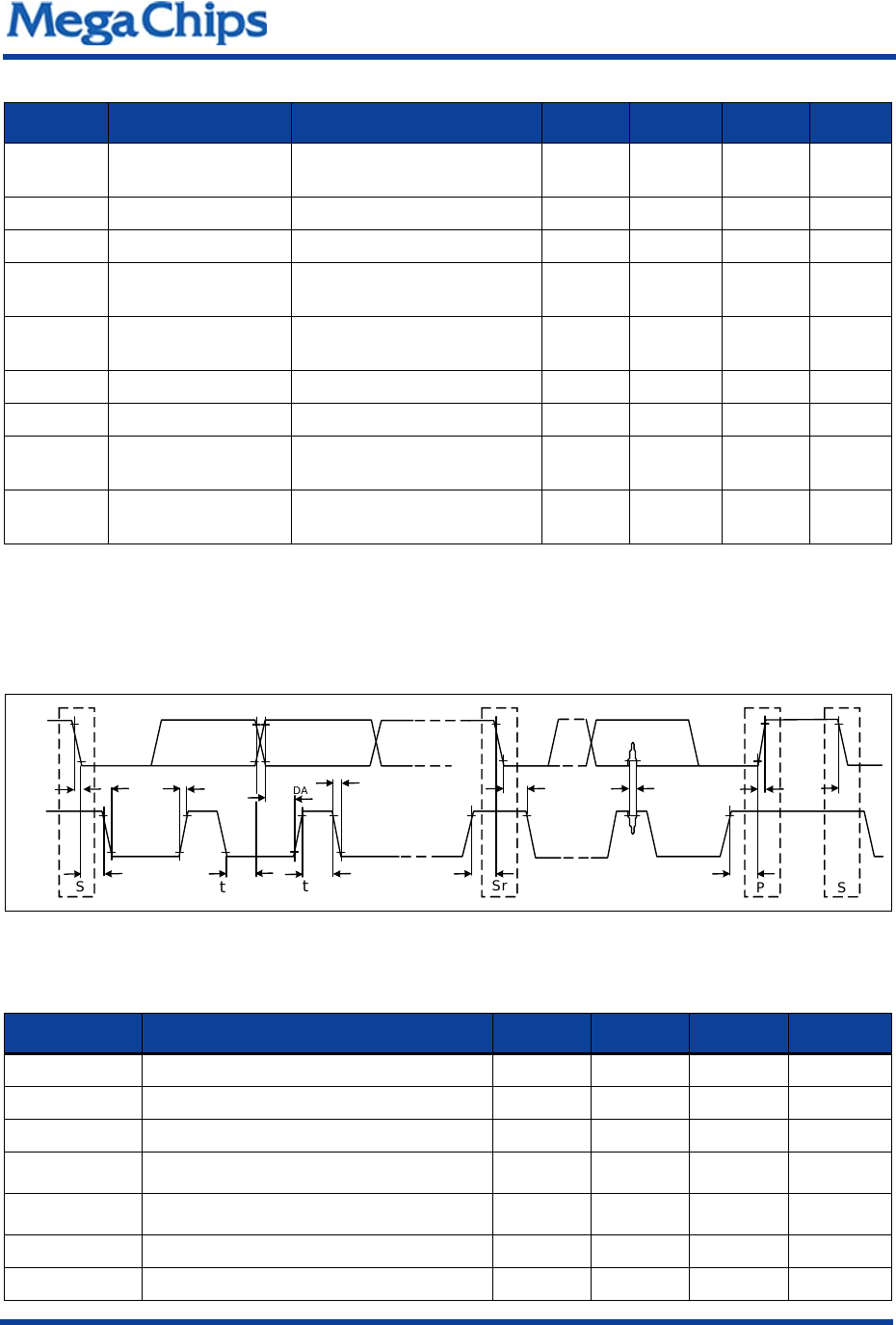

Figure 8. I2C timing
7.3.7 SPI interface timing
Tsu;STA Setup time for a
repeated START 0.6 1.09 - μs
tHD;DAT Data hold time 0 0.96 0.9(1) μs
tSU;DAT Data setup time 100 600 - ns
TBUF Bus free time between
STOP and START 1.3 1.7 ms - μs
CbCapacitance load for
each bus line - 400 pF
trRise time 20 220 300 ns
tfFall time 20 25 300 ns
Vnh Noise margin at high
level 0.2 VDD 0.3 - V
Vnl Noise margin at low
level 0.1 VDD 0.28 - V
Table 20. I2C interface timing
Symbol Parameter Conditions Min Measured Max Unit
SDA
SCL
tf
S
tLOW trtf
tSU;DAT tHD;STA tSP trtBUF
SP
tHD;STA tHD;DAT tHIGH tSU;STA Sr tSU;STO
Table 21. SPI interface timing, VDD = 3.3 V
Symbol Parameter Min Typ Max Units
FCLK Serial clock frequency - 75 MHz
TSCKH Serial clock high time 6 - ns
TSCKL Serial clock low time 6 - ns
TSCKR Serial clock rise time (slew rate) -3.0 - V/ns
TSCKF Serial clock fall time (slew rate) -3.0 - V/ns
TCES CE# active setup time 5 - ns
TCEH CE# active hold time 5 - ns
MegaChips
H‘GHVZ H‘GHVZ
[r
«0’
TCHZ
U
T 47 LSB .1.
10101010101010101010. 101010101010101010101 II101010101010101010101010101010101010101
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 36 of 39

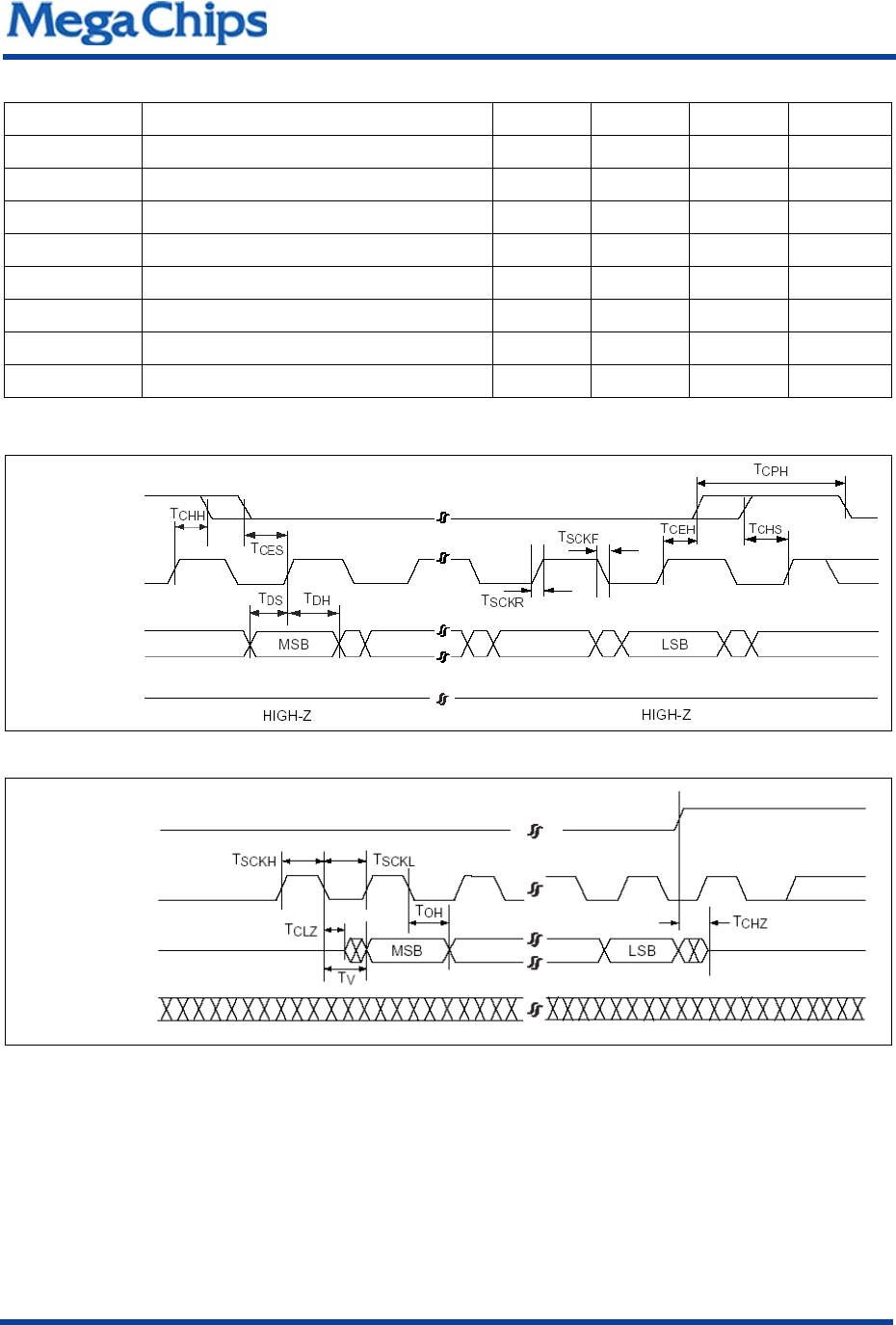

Figure 9. SPI input timing
Figure 10. SPI output timing
TCHS CE# not active setup time 5 - ns
TCHH CE# not active hold time 5 - ns
TCPH CE# high time 50 - ns
TCHZ CE# high to high-Z output - 7 ns
TCLZ SCK low to low-Z output 0 - ns
TDS Data in setup time 2 - ns
TDH Data in hold time 2 - ns
TOH Output hold from SCK change 0 - ns
TVOutput valid from SCK 1.5 3.5 - ns
Table 21. SPI interface timing, VDD = 3.3 V
ROM_SDI (SO)
ROM_CSn (CE#)
ROM_SCLK (SCK)
ROM_SDO (SI )
SPI_CLK
SPI_DO
SPI_CSN
SPI_DI
ROM_CSn (CE#)
ROM_SCLK (SCK)
ROM_SDO (SI )
ROM_SDI (SO)
SPI_CLK
SPI_DO
SPI_DI
SPI_CSN
MegaChips
STDP4320
C4320-DAT-01p MegaChips’ Proprietary Information
Page 39 of 39
39
Notice
Semiconductor products may possibly experience breakdown or malfunction. Adequate care should be taken with respect to the safety design
of equipment in order to prevent the occurrence of human injury, fire or social loss in the event of breakdown or malfunction of semiconductor
products
The overview of operations and illustration of applications described in this document indicate the conceptual method of use of the
semiconductor product and do not guarantee operability in equipment in which the product is actually used.
The names of companies and trademarks stated in this document are registered trademarks of the relevant companies.
MegaChips Co. provides no guarantees nor grants any implementation rights with respect to industrial property rights, intellectual property
rights and other such rights belonging to third parties or/and MegaChips Co. in the use of products and of technical information including
information on the overview of operations and the circuit diagrams that are described in this document.
The product described in this document may possibly be considered goods or technology regulated by the Foreign Currency and Foreign
Trade Control Law. In the event such law applies, export license will be required under said law when exporting the product. This regulation
shall be valid in Japan domestic.
In the event the intention is to use the product described in this document in applications that require an extremely high standard of reliability
such as nuclear systems, aerospace equipment or medical equipment for life support, please contact the sales department of MegaChips
Co. in advance.
All information contained in this document is subject to change without notice.
Copyright © 2016 MegaChips Corporation All rights reserved
MegaChips Corporation
Head Quarters
1-1-1 Miyahara, Yodogawa-ku Osaka 532-0003, Japan
TEL: +81-6-6399-2884
MegaChips Corporation
Taiwan Branch
RM. B 2F, Worldwide House, No.129,
Min Sheng E. Rd., Sec. 3, Taipei 105, Taiwan
TEL: +886-2-2547-1297
MegaChips Corporation
Tokyo Office
17-6 Ichiban-cho, Chiyoda-ku, Tokyo 102-0082, Japan
TEL: +81-3-3512-5080
MegaChips Corporation
Tainan Office
RM. 2, 8F, No.24, Da Qiao 2 Rd., Yong Kang Dist.,
Tainan 710, Taiwan
TEL: +886-6-302-2898
MegaChips Corporation
Makuhari Office
1-3 Nakase Mihama-ku Chiba 261-8501, Japan
TEL: +81-43-296-7414
MegaChips Corporation
Zhunan Office
No.118, Chung-Hua Rd., Chu-Nan, Miao-Li 350, Taiwan
TEL: +886-37-666-156
MegaChips Corporation
San Jose Office
2033 Gateway Place, Suite 400, San Jose, CA 95110 U.S.A.
TEL: +1-408-570-0555
MegaChips Corporation
Shenzhen Office
Room 6307, Office Tower, Shun Hing Square, 5002
Shen Nan Dong Road, Luohu District,
Shenzhen 518000, P. R. China
TEL: +86-755-3664-6990
MegaChips Corporation
India Branch
17th Floor, Concorde Block UB City,
Vittal Mallya Road, Bangalore 560-001, India
TEL: +91-80-4041-3999
Products related to this Datasheet
IC VIDEO SPLITTER 172LFBGA
EVB DISPLAYPORT 1.2A SPLITTER
EVB DISPLAYPORT 1.2 TO HDMI DUAL
