TAIYO YUDEN 2009
3
9
Notice for TAIYO YUDEN products 
Please read this notice before using the TAIYO YUDEN products.
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
1
INFORMATION ON THE GENERAL CATALOG
REMINDERS
■ Product information in this catalog is as of October 2008. All of the contents specified herein are
subject to change without notice due to technical improvements, etc. Therefore, please check for the
latest information carefully before practical application or usage of the Products.
Please note that Taiyo Yuden Co., Ltd. shall not be responsible for any defects in products or equipment
incorporating such products, which are caused under the conditions other than those specified in this
catalog or individual specification.
■ Please contact Taiyo Yuden Co., Ltd. for further details of product specifications as the individual
specification is available.
■ Please conduct validation and verification of products in actual condition of mounting and operating
environment before commercial shipment of the equipment.
■ All electronic components or functional modules listed in this catalog are developed, designed and
intended for use in general electronics equipment.(for AV, office automation, household, office supply,
information service, telecommunications, (such as mobile phone or PC) etc.). Before incorporating the
components or devices into any equipment in the field such as transportation,( automotive control, train
control, ship control), transportation signal, disaster prevention, medical, public information network
(telephone exchange, base station) etc. which may have direct influence to harm or injure a human
body, please contact Taiyo Yuden Co., Ltd. for more detail in advance.
Do not incorporate the products into any equipment in fields such as aerospace, aviation, nuclear
control, submarine system, military, etc. where higher safety and reliability are especially required.
In addition, even electronic components or functional modules that are used for the general electronic
equipment, if the equipment or the electric circuit require high safety or reliability function or
performances, a sufficient reliability evaluation check for safety shall be performed before commercial
shipment and moreover, due consideration to install a protective circuit is strongly recommended at
customer's design stage.
■ The contents of this catalog are applicable to the products which are purchased from our sales offices
or distributors (so called “TAIYO YUDEN’s official sales channel”).
It is only applicable to the products purchased from any of TAIYO YUDEN’ s official sales channel.
■ Please note that Taiyo Yuden Co., Ltd. shall have no responsibility for any controversies or disputes that
may occur in connection with a third party's intellectual property rights and other related rights arising
from your usage of products in this catalog. Taiyo Yuden Co., Ltd. grants no license for such rights.
■ Caution for export
Certain items in this catalog may require specific procedures for export according to “Foreign
Exchange and Foreign Trade Control Law” of Japan, “U.S. Export Administration Regulations”, and
other applicable regulations. Should you have any question or inquiry on this matter, please contact our
sales staff.
Should you have any question or inquiry on this matter, please contact our sales staff.
7”—/WAVD TAIYD YUDEN 2°09

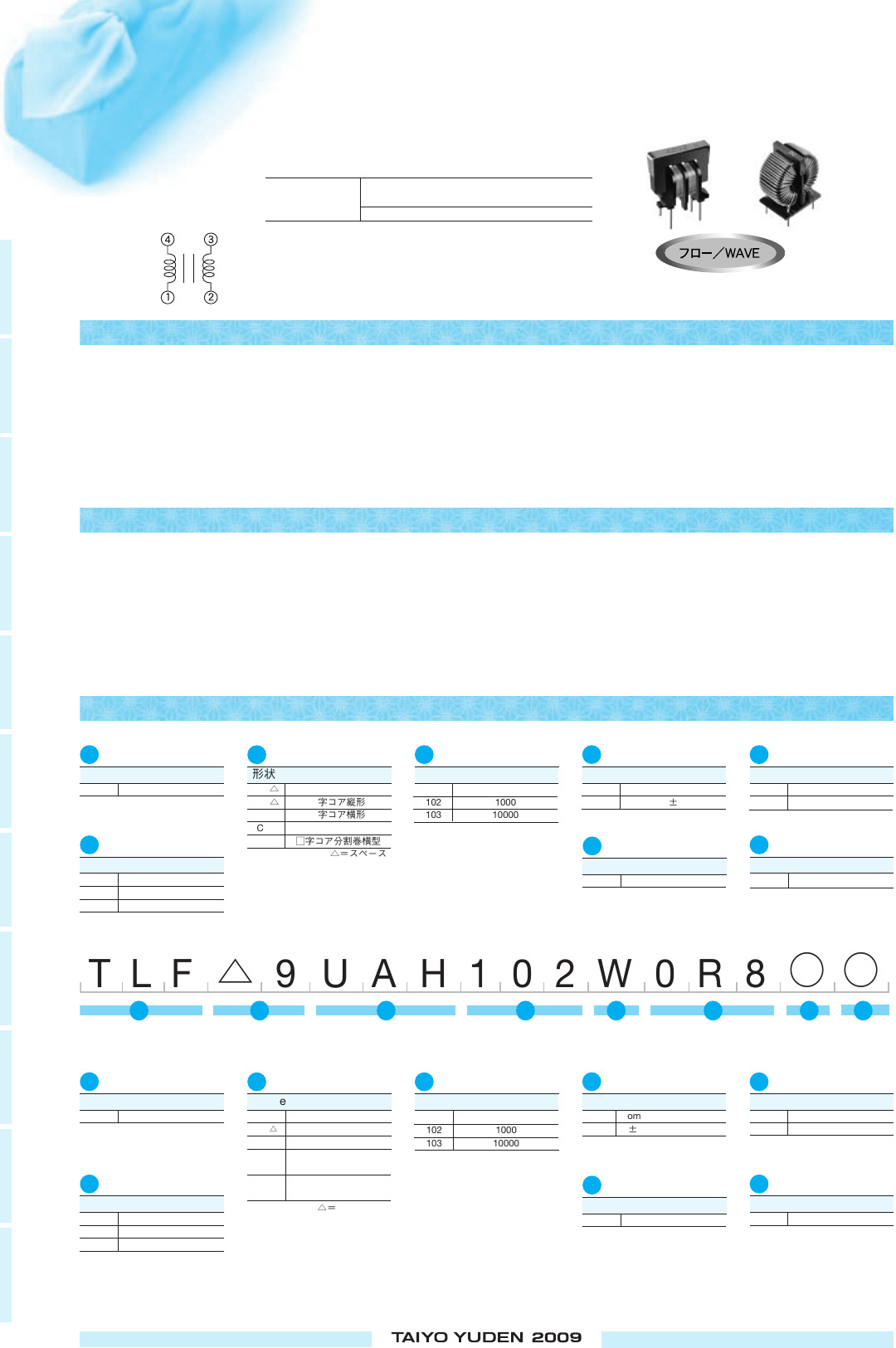

用途 APPLICATIONS
形名表記法 ORDERING CODE
特長 FEATURES
386 △
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
TLF△
2
1
4
6
8
7
5
3
9 UAH102W0R8○ ○
TLF ラインフィルタ
・TLF 9UA （H） タイプ ………………………………………………… 小型形状
・TLF14CB （H）タイプ ………………………………………………… 普通形状
・TLF25RA タイプ ………………………………………………… 大電流容量
・TLF 9UA （H） TYPE ............................................ Small-sized configuration
・TLF14CB（H） TYPE ................................................ Ordinary configuration
・TLF25RA TYPE ............. Large current capacity for power supply line use
As a preventive measure against noise terminal voltage or power supply
noise in TV or VTR units, SW power supplies, NC machines, computer
systems, peripheral units, measuring instruments, and controllers.
・TLF 9UA （H） Type ............................................... low-current applications
・TLF14CB （H）
Types ...........equipment with several tens of watts of input power
・TLF25RA Type ....................................................high-current applications
コモンモードチョークコイル
（ACライン用） リードタイプ
COMMON MODE CHOKE COILS
(FOR AC LINES) LEADED TYPE
TV、VTR、SW電源,NCマシン、コンピュータおよび周辺機器,各種計測器、
各種制御装置などの雑音端子電圧、電源ラインノイズ対策
・TLF 9UA （H） TYPE ………………………………………… 小電力用の機器
・TLF14CB （H） TYPE …………………………… 入力電力数10W の機器
・TLF25RA TYPE ……………………………………………… 高電力用の機器
1
形式
2
△9 9
1 4 14
2 5 25
コア寸法（mm）
3
形状
RA△ リングコア縦形
UA△ U字コア縦形
UAH U字コア横形
CB△ □字コア分割巻縦型
 CBH □字コア分割巻横型
4
公称インダクタンス（μH）
△ 公称値以上
W ±
インダクタンス許容差（％）
6
R54 0.54
0R8 0.8
定格電流（A）
8
当社管理記号
5
100
10
TLF Line filter
1
Type 
2
Core dimensions（mm）
3
Shape 
RA
△
Ring core, vertical type
UA
△
U core, vertical type
UAH U core, horizontal type
CB
△
 CBH
4
Nominal Inductance（μH）
△ Nominal Values or higher
W ±
Inductance tolerance（％）
6
R54 0.54
0R8 0.8
Rated current（A）
8
5
△ 一般
製品区分記号
7
△＝スペース
例
102 1000
103 10000 △＝スペース
△ 標準品
△＝スペース
△＝スペース
△＝スペース
△ Standard
7
△9 9
1 4 14
2 5 25
example
102 1000
103 10000
等価回路 （Equivalent circuit）
R＝小数点
△＝Blank space
△＝Blank space
△＝Blank space
△＝Blank space
Internal code
△ Standard Product
△＝Blank space
R=decimal point
100
10
OPERATING
TEMP.
（製品自己発熱を含む）
（Including self-generated heat）
Product classification code
Square type core
vertically split wound
Square type core
horizontally split wound
TLF9UAタイプ：ー25∼＋115℃
TLF14CBタイプ：ー20∼＋105℃
TLF25RAタイプ：ー25∼＋105℃
7: Dmlx 77 Umix ”max 12 “"31 mm mm In 35mm (0 £87m“) ‘0 sns ‘0 357 22 ””3“ 3A umu m “W, U 3m, = a (5)] . i [ g s, 4'13 A , g s x a a a a > 3 E k a a _ _ . 2 g . A 5 s: 3 s = g V gag; H * I I 3% ” n. a a ‘ 3 a 17 m s V c (,3 032) a ; fluxes ; (usmmnza) Q d ° 3 (minimum) V W? [o o z a 2 a \2 r g 3 v a c/ [momsn H W mm mm mum mm (mm, (nasvmm mm P ’- r—j r—A} A a "5 é E5 5 * 3E ’ D ans m ’ “ ”L, « fl (600241 V f; \ Emmanuoczn‘, rm.) ; mm «mm M7207 “3 E! m g a a J g E 3 ~ Q5QBQDQB CBC») TAIYD YU DEN EODS
外形寸法 EXTERNAL DIMENSIONS
FERRITE PRODUCTS
5
387
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
P.388 P.389 P.389 P.400P.14
TLF14CB Type TLF14CBH Type TLF25RA Type
TLF9UA Type TLF9UA H Type
（0.177±0.039）
unit：mm （inch）
〔 〕 参考値
〔 〕 Reference Values
アイテム一覧
Part Numbers
特性図
Electrical Characteristics
梱包
Packaging
信頼性
Reliability Data
使用上の注意
Precautions
セレクションガイド
Selection Guide
etc
P.408
TLF auA 202wn54 2 4 0 0,54 TLF auA 302wR42 a 4 5 0,42 TLF auA 502wna2 5 2 5 0,32 TLF auA au2wn25 a 4 0 0,25 TLF auAH m2wuaa TLF auAH 202wn54 TLF auAH 302wR42 a 4 5 0,42 TLFNCB ‘02 m5 nmca 332 we as 032 1,0 nmca 472 we 4 7 use 1,0 nmca 552 can 56 042 0,5 nmca 552 DRE 6 a 06 0,5 nmca um mm m 035 0,7 nmca 223 um 22 4 7 0,4 nmca 333 0m 33 2 7 0,: nmca 473 0R2 47 a a 0,2 nmca 553 0R2 56 5 0,2 TLFMCEH 102 ‘RS TLFMCEH 222 ‘R2 TLFMCEHSSZ we as 032 1,0 TLFMCEH 223 um 22 4 7 0,4 TLFMCEH 333 0R3 as 2 7 0,: mwcau 47a 0R2 47 a a 0,2 mwcau 553 0R2 56 5 0,2 TLFZERA mzwano TLFZERA 202w5n5 2 005 5,5 TLFZERA auzwsno a one 5,0 TLFZERA SDZWSRD 5 007 5,0 TLFZERA EDZWSRS a on 3,5 TAIYC) YUDEN 2009
388 △
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
アイテム一覧 PART NUMBERS
Type インダクタンス
［mH］
Inductance
直流抵抗［Ω］
DC resistance
（max）
定格電流［A］
Rated current
（max）
定格電圧［V］
Rated voltage
（max）
耐電圧［V］
Withstanding
voltage
［1 minute］
（min）
TLF 9UA 102W0R8
TLF 9UA 202WR54
TLF 9UA 302WR42
TLF 9UA 502WR32
TLF 9UA 802WR25
TLF 9UA 103WR23
TLF 9UAH 102W0R8
TLF 9UAH 202WR54
TLF 9UAH 302WR42
TLF 9UAH 502WR32
TLF 9UAH 802WR25
TLF 9UAH 103WR23
TLF14CB 102 1R5
TLF14CB 222 1R2
TLF14CB 332 1R0
TLF14CB 472 1R0
TLF14CB 562 0R8
TLF14CB 682 0R8
TLF14CB 103 0R7
TLF14CB 223 0R4
TLF14CB 333 0R3
TLF14CB 473 0R2
TLF14CB 563 0R2
TLF14CB 683 0R2
TLF14CBH 102 1R5
TLF14CBH 222 1R2
TLF14CBH 332 1R0
TLF14CBH 472 1R0
TLF14CBH 562 0R8
TLF14CBH 682 0R8
TLF14CBH 103 0R7
TLF14CBH 223 0R4
TLF14CBH 333 0R3
TLF14CBH 473 0R2
TLF14CBH 563 0R2
TLF14CBH 683 0R2
TLF25RA 102W9R0
TLF25RA 202W5R5
TLF25RA 302W5R0
TLF25RA 502W5R0
TLF25RA 802W3R5
TLF25RA 103W2R5
形  名
Ordering code
適用周波数［MHz］
Applicable
frequency
参考値
Reference Value
AC250 AC2000
0.1∼10
0.1∼20
0.5
1.0
1.5
2.5
4.0
4.5
0.5
1.0
1.5
2.5
4.0
4.5
0.1
0.18
0.32
0.38
0.42
0.6
0.85
1.7
2.7
3.6
5
6.5
0.1
0.18
0.32
0.38
0.42
0.6
0.85
1.7
2.7
3.6
5
6.5
0.03
0.05
0.06
0.07
0.11
0.17
1
2
3
5
8
10
1
2
3
5
8
10
1.0
2.2
3.3
4.7
5.6
6.8
10
22
33
47
56
68
1.0
2.2
3.3
4.7
5.6
6.8
10
22
33
47
56
68
1
2
3
5
8
10
0.80
0.54
0.42
0.32
0.25
0.23
0.80
0.54
0.42
0.32
0.25
0.23
1.5
1.2
1.0
1.0
0.8
0.8
0.7
0.4
0.3
0.2
0.2
0.2
1.5
1.2
1.0
1.0
0.8
0.8
0.7
0.4
0.3
0.2
0.2
0.2
9.0
5.5
5.0
5.0
3.5
2.5
TLF9UA
TLF9UAH
TLF14CB
TLF14CBH
TLF25RA
EHS
（Environmental
Hazardous
Substances）
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
インダクタンス
許容差
Inductance
Tolerance
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
min
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
＋100％/ー10％
mm VLFQUMLFQUM Type mm nmcammcau Yyne mm “mm Tyne mm 100 mum ‘00 § § m g maszS 3 a: saw ms 3 111an g E g suzw m 9,1 ““5 ‘ :azw 5RD zozwsRs - ‘ ' ”o‘m m ‘ 10 °‘ 00! 0.! ‘ Io - mm m ‘ m Frequency (MHz) Frequency [MHz] Frrquzm'y (MHz) (imam) Test conditions Emmfifi E HP’4192A Equipment : HP’4192A VosC-D.35V VOSC’D.35V WEEK Test cvcml 473—99Z Tn impedance ana‘yler 7134f—A E/l\§iiiffifl( 5.) am» TAIYD YU DEN EODS
FERRITE PRODUCTS
5
389
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
最小受注単位数 Minimum Quantity
CM / BU Type
最小受注単位数（pcs.）
Type Minimum Quantity
箱づめ
Box
TLF9UA□ 500
TLF9UB□ 500
TLF14CB□ 500
TLF25RA 200
TLF Type
最小受注単位数（pcs.）
Type Minimum Quantity
箱づめ 袋づめ
Box Bulk
CM05RA06 ̶ 500
CM05RB□□ 1000 ̶
CM08RA□□ ̶ 250
CM08RB□□ 500 ̶
CM12RA02 ̶ 100
BU08RA□□ ̶ 200
インピーダンス―周波数特性 IMPEDANCE-FREQUENCY CHARACTERISTIC
TLF9UA/TLF9UAH Type
TLF25RA Type
梱包 PACKAGING
TAIYD YU DEN EODS
FERRITE PRODUCTS
5
401
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
RELIABILITY DATA 1/4
Item
CMーRA/
BUーRA Type
Specified Value
Test method and remarks
TLF25RA
CMーRB Type
ー25∼＋105℃
ー40∼＋85℃
Within the specifed range
Within the specifed tolerance
Within the specifed tolerance
TLF9U
TLF14CB
ー25∼＋105℃
TLF9U：ー25∼＋115℃
TLF14CB：ー20∼＋
105℃
No abnormality
45℃ max.Refer to individual specification
100MΩmin.
100MΩmin.
Including temperature rise due to selfーgenerated heat.
CM：
The maximum DC value having temperature increase
within specified temperature, as detailed in individual
specification.
TLF9UA, 14CB, 25RA：
The maximum AC value having temperature increase
within 45℃ by the application of AC current.
TLF9UB：
The maximum DC value having temperature increase
within 45℃ by the application of DC current.
CM：
Measuring equipmet：4262A （HP） or its equivalent
Measuring frequency：1kHz
TLF9U, 25RA：
Measuring equipment：Impedance analyzer （HP4192A）
or its equivalent
Measuring frequency：1kHz
Measuring voltage：0.35Vosc
TLF14CB：
Measuring equipment：LCR meter 4284A or its equivalent
Measuring frequency：1kHz
Measuring voltage：1.0V
CM, TLF：
Measuring equipment：DC ohmmeter
CM：
Fix the component in the direction to draw terminal
and gradually apply tensile force as detailed in indiviual
specifications.
TLF9U：
Apply the stated tensile force gradually in the direction
to draw terminal.
Nominal wire diameter tensile φd
force duration
〔mm〕 〔N〕 〔S〕
φ0.6 5 30±5
TLF14CB：
Apply the stated tensile force gradually in the direction
to draw terminal.
Nominal wire diameter tensile φd
force duration
〔mm〕 〔N〕 〔S〕
φ0.8 10 30±5
TLF25RA：
Apply the tensile force of 10N in the direction to draw
terminal for 5 seconds.
TLF：
Resistance substitution method
Applied current：Rated current
Duration：1 hr
CM・TLF：
Applied voltage：Rated voltage （CMーRA/BUーRA、CMーRB）
：500VDC （TLF9UA、14CB、25RA）
：250VDC （TLF ９UB）
Duration：60sec.
TLF：
Applied voltage：500VDC （TLF9UA、14CB）
：250VDC （TLF ９UB）
Duration：60 sec.
1.Operating Temperature
Range
2.Storage temperature range
3.Rated current
4.Inductance
5.DC resistance
6.Terminal strength
tensile force
7.Temperature rise
8.Insulation resistance
between wires
9.Insulation resistance
between wire and core
TAIYD YU DEN EODS
FERRITE PRODUCTS
5
403
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
RELIABILITY DATA 2/4
Item
CMーRA/
BUーRA Type
Specified Value
Test method and remarks
10.Withstanding：
between wires
11.Withstanding：
between wires and core
12.Rated voltage
13.Resistance to vibration
14.Solderability
15.Resistance to soldering
heat
TLF25RA
CMーRB Type TLF9U
TLF14CB
No abnormality CM・TLF：
Applied voltage：250VDC （CMーRA/BUーRA、CMーRB）
：2000VAC
（TLF9UA、14CB、25RA）
：500VDC （TLF ９UB）
Duration：60sec.
TLF：
Applied voltage：2000VAC （TLF9UA、14CB）
：500VDC （TLF9UB）
Duration：60sec.
TLF9UA, 14CB, 25RA：250VAC
TLF9UB：50VDC
CM，TLF：
According to JIS C0040
Direction：2hrs each in X, Y and Z direction Total：6hrs
Frequency range：10 to 55 to 10Hz （1 min.）
Amplitude：1.5mm（shall not exceed acceleration 196m
2
/s）
Mounting method：soldering onto PC board
Recovery：2 to 24 hrs of recovery under the standard
condition after the test. （CMーRB）
：At least 1hr of recovery under the standard
condition after the removal from test cham-
ber, followed by the measurement within
2hrs. （TLF9U、
14CB
）
CM：
Solder temperature：235±5℃
Duration：2±0.5sec.
Immersion depth：According to detailed specification.
TLF：
Solder temperature：230±5℃
Duration：2±0.5sec.（9U、
25RA
）
：3±0.5sec.（14CB）
Immersion depth：Up to 1.0 to 1.5mm from PBC mount-
ed level.
CM：
Solder temperature：260±5℃
Duration：5±0.5sec.
Immersion depth：Up to 2∼2.5mm from terminal root.
Recovery：1 to 2 hrs of recovery under the standard
condition after the test.
TLF：
Solder temperature：260±5℃
Duration：5±1sec.（
25RA
）
：10±1sec.（9U、14CB）
Immersion depth：Up to 1.0 to 1.5mm from PBC mount-
ed level.
Recovery ：
At least 1hr of recovery under the standard
condition after the removal from test chamber,
followed by the measurement within 2hrs.
No abnormality
Within the specified range
Appearance：
No abnormality
Inductance change：
Within±15％
TLF9U
Inductance change：
Within±5％
TLF14CB
Within the specified
range
At least 75％ of terminal electrode is covered by
new solder.
Solder shall be uniformly adhered onto im-
mersed surfaces.
Appearance：No abnormality
Impedance change ：Refer to individual specifi-
cation
TLF9UA・TLF25RA：
Inductance change：Within±5％
TLF14CB
Within the specified range
w Damp mm m Lummg undevdamv m: w Lnamng at Ngmzmpuamr: TAIYD YU DEN EODS
FERRITE PRODUCTS
5
405
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
RELIABILITY DATA   3/4
Item
CMーRA/
BUーRA Type
Specified Value
Test method and remarks
16.Thermnal shock
17.Damp heat
18.
Loading under damp heat
19.
Loading at high temperature
TLF25RA
CMーRB Type TLF9U
TLF14CB
CM, TLF：
According to JIS C0025
Conditions for 1 cycle
Step Temperature 〔℃〕 Duration 〔min〕
1 ー25±3 30±3
2 Room Temperature Within 3
3 ＋85±2 30±3
4 Room Temperature Within 3
Number of cycles：10
Recovery ：
At least 1hr of recovery under the standard
condition after the removal from test chamber,
followed by the measurement within 2 hrs.
TLF：
Temperature：60±2℃
※TLF14CB Temperature：40±2℃
Humidity：90∼95％RH
Duration：500 hrs
Recovery ：At least 1hr of recovery under the standard
removal from test chamber followed by the
measurement within 2 hrs.
CM：
Temperature：40±2℃
Humidity：90∼95％RH
Duration：500 （＋12, ー0） hrs
Applied current：Rated current
Recovery：1 to 2hrs of recovery under the standard con-
dition after the removal from test chamber.
TLF：
Temperature：60±2℃
※TLF14CB Temperature：40±2℃
Humidity：90∼95％RH
Duration：100 hrs
Applied voltage ：Apply the following specified voltage
between windings.
TLF9UA、25RA 250VAC
TLF9UB 50VDC
※TLF14CB Duration ：500 hrs Apply rated current
across windings
Recovery ：At least 1hr of recovery under the standard
removal from test chamber followed by the
measurement within 2 hrs.
TLF：
Temperature：85±2℃
Duration：100 hrs
Applied voltage ：Apply the following specified voltage
between windings.
TLF9UA、25RA 250VAC
TLF9UB 50VDC
※TLF14CB Duration：500 hrs
Apply rated current across windings
Recovery ：At least 1hr of recovery under the standard
removal from test chamber followed by the
measurement within 2 hrs.
Appearance：No abnormality
Impedance change ：Refer to individual specifi-
cation
TLF9UA・TLF25RA：
Inductance change：Within±15％
TLF14CB：
・Withstanding voltage：No abnormality
・Insulation resistance：No abnormality
Withstanding voltage ：No abnormality Insula-
tion resistance：No abnormality
TLF9UA・TLF25RA：
Inductance change ：Within±15％
TLF14CB：
Withstanding voltage：No abnormality
Insulation resistance：No abnormality
Appearance：No abnormality
Inductance change ：Refer to individual specifi-
cation
Withstanding voltage：No abnormality
Insulation resistance：No abnormality
TAIYC) YUDEN 2009
FERRITE PRODUCTS
5
407
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
RELIABILITY DATA 4/4
Item
CMーRA/
BUーRA Type
Specified Value
Test method and remarks
20.Low temperature life test
TLF25RA
CMーRB Type TLF9U
TLF14CB
Appearance：No abnormality
Inductance change ：Refer to individual specifi-
cation
TLF9U・TLF25RA：
Inductance change：Within±15％
TLF14CB：
・Withstanding voltage：No abnormality
・Insulation resistance：No abnormality
CM：
Temperature：ー40±3℃
Duration：500 （＋12, ー0） hrs
Recovery：1 to 2hrs of recovery under the standard con-
dition after the removal from test chamber.
（CMーRA）
：1 to 2hrs of recovery under the standard con-
dition after the removal from test chamber.
（CMーRB）
TLF：
Temperature：ー25±2℃
※TLF14CB Temperature：ー40±2℃
Duration：500 hrs
Recovery ：At least 1hr of recovery under the standard
removal from test chamber followed by the
measurement within 2 hrs.
CM：
Temperature：85±2℃
Duration：500 （＋12, ー0） hrs
Recovery：1 to 2hrs of recovery under the standard con-
dition after the removal from test chamber.
（CMーRA）
：1 to 2hrs of recovery under the standard con-
dition after the removal from test chamber.
（CMーRB）
TLF：
Temperature：85±2℃
※TLF14CB Temperature：105±3℃
Duration：500 hrs
Recovery ：At least 1hr of recovery under the standard
removal from test chamber followed by the
measurement within 2 hrs.
21.High Temperature life test Appearance：No abnormality
Inductance change ：Refer to individual specifi-
cation
TLF9U・TLF25RA：
Inductance change：Within±15％
TLF14CB：
・Withstanding voltage：No abnormality
・Insulation resistance：No abnormality
cM-RA Type,cM-HB TypeJLF Type TAIYD YU DEN EODS
FERRITE PRODUCTS
5
409
△
！当社カタログをご使用の際には「当社製品に関するお断り」を必ずお読みください。△
！
Please read the "Notice for TAIYO YUDEN products" before using this catalog.
Technical considerationsStages Precautions
CM-RA Type，CM-RB Type，TLF Type
1.Circuit Design
2.PCB Design
3.Soldering
4.Cleaning
5.Handling
6.Storage conditions
Operating environment,
1.The products described in this specification are intended for
use in general electronic equipment,（office supply
equipment, telecommunications systems, measuring
equipment, and household equipment）. They are not
intended for use in mission-critical equipment or systems
requiring special quality and high reliability （traffic systems,
safety equipment, aerospace systems, nuclear control
systems and medical equipment including life-support
systems,） where product failure might result in loss of life,
injury or damage. For such uses, contact TAIYO YUDEN
Sales Department in advance.
Design
1.Please design insertion pitches of a base in the pitches that
fitted a terminal interval.
Wave soldering
1.Please refer to the specifications in the catalog for a wave
soldering.
2.Do not immerse the entire Inductors in the flux during the
soldering operation.
Lead free soldering
1.When using products with lead free soldering, we request to
use them after confirming of adhesion, temperature of
resistance to soldering heat, etc. sufficiently.
Recommended conditions for using a soldering iron
Put the soldering iron on the land-pattern.
Soldering iron's temperature - Below 350 ℃
Duration - 3 seconds or less
The soldering iron should not directly touch the product.
Cleaning conditions
1.TLF type
Please contact any of our offices for about a cleaning,
Handling
1.Keep the product away from all magnets and magnetic
objects.
Mechanical considerations
1.Please do not give the product any excessive mechanical
shocks.
2.TLF type
Please do not add any shock or and power to a product in
transportation.
Packing
1.Please do not give the product any excessive mechanical
shocks.
In loading, please pay attention to handling indication
mentioned in a packing box （a loading direction / number of
maximum loading / fragile item）.
Storage
1.To maintain the solderability of terminal electrodes and to
keep the packing material in good condition, temperature
and humidity in the storage area should be controlled.
・Recommended conditions
 Ambient temperature      0∼40℃
 Humidity  Below 70% RH
The ambient temperature must be kept below 30℃. Even
under ideal storage conditions, solderability of products
electrodes may decrease as time passes. For this reason,
product should be used within one year from the time of
delivery.
In case of storage over 6 months, solderability shall be
checked before actual usage.
1.When Inductors are mounted onto a PC board, hole dimensions on the board should
match the lead pitch of the component, if not, it will cause breakage of the terminals
or cracking of terminal roots covered with resin as excess stress travels through the
terminal legs.
1.If products are used beyond the range of the recommended conditions, heat stresses
may deform the products, and consequently degrade the reliability of the products.
1.There is a case that a characteristic varies with magnetic influence.
1.There is a case to be damaged by a mechanical shock.
2.TLF type
There is a case to be broken by a fall.
1.There is a case that a lead route turns at by a fall or an excessive shock.
1. Under a high temperature and humidity environment, problems such as reduced
solderability caused by oxidation of terminal electrodes and deterioration of
taping/packaging materials may take place.
PRECAUTIONS
