OKDL-T/18-W12-zzz-C Datasheet by Murata Power Solutions Inc.
View All Related Products | Download PDF Datasheet
Murcia Power Solutions
6
fl] T w
:nv'u'nfi 3“"; W nmpi‘u: J
PART NUMBER STRUCTURE
PM
Applications
Distributed power architectures
Intermediate bus voltage applications
Servers and storage applications
Network equipment
Typical unit
FEATURES
Small package: 12.2 x 12.2 x 8.0 mm (0.48 x 0.48 x 0.315 in)
0.6 V - 1.8 V output voltage range
High effi ciency, typ. 91.6% at 12Vin, 1.8Vout and 50% load
Confi guration Control and Monitoring via PMBus™
Adaptive compensation of PWM control loop & fast loop
transient response
Synchonization input & phase spreading/interleaving
Voltage Tracking & Voltage margining
MTBF 24 Mh
For narrow board pitch applications (15 mm/0.6 in)
Pre-bias start-up & shut down
Monotonic & Soft start Power up
Input under voltage shutdown; OTP, output OVP, OCP
Remote control & Power Good
Differential sense pins
Voltage setting via pin-strap or PMBus™
Advanced Confi gurable via Graphical User Interface
ISO 9001/14001 certifi ed supplier
Highly automated manufacturing ensures quality
PRODUCT OVERVIEW
The OKDL-T/18-W12 is a high effi ciency,
digital point-of-Load (PoL) DC-DC power
converter capable of delivering 18A/36W.
Designed for a minimal footprint, the high
power-density LGA module measures
just 12.2 x 12.2 x 8.0 mm (0.48 x 0.48 x
0.315 in).
PMBus™ compatibility allows monitor-
ing and confi guration of critical system-
level performance requirements.
Apart from standard PoL performance
and safety features like OVP, OCP, OTP,
and UVLO, these digital converters have
advanced features: Adaptive compen-
sation of PWM control loop, fast loop
transient response, synchronization,
and phase spreading. These converters
are ideal for use in telecommunica-
tions, networking, and distributed power
applications.
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 1 of 28
www.murata-ps.com
www.murata-ps.com/support
Trimmable Output
Voltage Range
0.6 - 1.8Vdc
-T
LGA Package
L
Digital Non-isolated PoL
OKD C-
RoHS Hazardous
Substance Compliance
C = RoHS-6 (does not claim EU RoHS exemption
7b – lead in solder)
Maximum Rated Output
Current in Amps
/18
Input Voltage Range
4.5-14Vdc
W12-xxx-
Software Confi guration Digits
(001 is positive turn-on logic)
(002 is negative turn-on logic)*
*Special quantity order is required;
contact Murata Power Solutions for
MOQ and lead times.
Mm“. My salmon; ”0km
F
Characteristics Min Typ Max Unit
TP1 Operating temperature (see Thermal Consideration section) -40 120 °C
TSStorage temperature -40 125 °C
VIInput voltage (See Operating Information Section for input and output voltage relations) -0.3 18 V
Logic I/O voltage CTRL, SA0, SA1, SALERT, SCL, SDA, VSET, SYNC, PG, CS_VTRK -0.3 4 V
Ground voltage differential -S, PREF, GND -0.3 0.3 V
Analog pin voltage VO, +S -0.3 5.5 V
Absolute Maximum Ratings
Stress in excess of Absolute Maximum Ratings may cause permanent
damage. Absolute Maximum Ratings, sometimes referred to as no
destruction limits, are normally tested with one parameter at a time
exceeding the limits in the Electrical Specifi cation. If exposed to stress
above these limits, function and performance may degrade in an
unspecifi ed manner.
Confi guration File
This product is designed with a digital control circuit. The control
circuit uses a confi guration fi le which determines the functionality
and performance of the product. The Electrical Specifi cation table
shows parameter values of functionality and performance with the
default confi guration fi le, unless otherwise specifi ed. The default
confi guration fi le is designed to fi t most application needs with focus
on high effi ciency. If different characteristics are required it is pos-
sible to change the confi guration fi le to optimize certain performance
characteristics.
In this Technical specifi cation examples are included to show the
possibilities with digital control. See Operating Information section for
information about trade offs when optimizing certain key performance
characteristics.
Fundamental Circuit Diagram
VOUTVIN
Controller and digital interface
CTRL
SDA
SCL
SALERT
CS_VTRK
PREF
GND
CICO
+Sense
-Sense
PGOOD
SA0
SYNC
VSET
SA1
General and Safety Conditions Min Typ Max Unit
Safety Designed for UL/IEC/EN 60950 1
Calculated MTBF Telcordia SR-332, Issue 2 Method 1 24 Mhrs
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 2 of 28
www.murata-ps.com/support
ORDERING GUIDE
Model Number Output
OKDL-T/18-W12-001-C 0.6-1.8 V, 18 A/ 36 W
Mum power sauna“.s Warm
Electrical Specifi cations
TP1 = -30 to +95°C, VI = 4.5 to 14 V, VI > VO + 1.0 V
Typical values given at: TP1 = +25°C, VI = 12.0 V, max IO, unless otherwise specifi ed under Conditions.
Default confi guration fi le, 190 10-CDA 102 0519/001. VO defi ned by pin strap.
External CIN = 47 µF ceramic + 270 µF/10 mΩ electrolytic, COUT = 3x100 µF + 0.1 µF ceramic.
See Operating Information section for selection of capacitor types. Sense pins are connected to the output pins.
Characteristics Conditions Min Typ Max Unit
VIInput voltage 4.5 14 V
VO
Output voltage without pin strap 0V
Output voltage adjustment range 0.60 1.8 V
Output voltage adjustment including PMBus margining 0.50 2.0 V
Output voltage set-point resolution 1.2 mV
Output voltage accuracy Including line, load, temp -1 1 % VO
Internal resistance +S/-S to VOUT/GND 47
+S bias current 50 µA
-S bias current -35 µA
Line regulation IO = max IO
VO = 0.6 V 3
mVVO = 1.2 V 3
VO = 1.8 V 5
Load regulation IO = 0 - 100%
VO = 0.6 V 2
mVVO = 1.2 V 2
VO = 1.8 V 1
VOac
Output ripple & noise
(up to 20 MHz)
VO = 0.6 V 10
mVp-pVO = 1.2 V 10
VO = 1.8 V 11
IO Output current 018A
ISStatic input current at max IO
VO = 0.6 V 0.38
AVO = 1.2 V 0.70
VO = 1.8 V 1.00
Ilim Current limit threshold 22 23 A
Isc Short circuit current RMS, hiccup mode,
VO = 3.3 V, 4 mΩ short 3A
Effi ciency
50% of max IO
VO = 0.6 V 81.0
%VO = 1.2 V 88.7
VO = 1.8 V 91.6
IO = max IO
VO = 0.6 V 79.3
%VO = 1.2 V 87.5
VO = 1.8 V 90.5
d Power disipation at max IO
VO = 0.6 V 2.80
WVO = 1.2 V 3.10
VO = 1.8 V 3.40
Pli Input idling power IO = 0
VO = 0.6 V 0.70
WVO = 1.2 V 0.70
VO = 1.8 V 0.71
PCTRL Input standby power Turned off with CTRL-pin 0.25 W
CIInternal input capacitance VI = 0 V 47 F
COInternal output capacitance
VO = 0 V 47
FVO =1.2 V 39
VO = 1.8 V 35
COUT Total output capacitance Effective capacitance. Note 1 55 F
Vtr1 Load transient peak voltage deviation Load step 25-75-25% of maxIO, di/dt
= 1.5 A/s
CO=3x100 F + 270 F
VO = 1.8 V
70 mV
ttr1 Load transient recovery time 22 µs
Fsw
Switching frequency 600 kHz
Switching frequency range PMBus confi gurable
FREQUENCY_SWITCH. Note 2 300-1000 kHz
Switching frequency set-point accuracy -10 ±5 10 %
External Sync Duty Cycle 40 60 %
Input Clock Frequency Drift Tolerance External clock source -10 10 %
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 3 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
Characteristics Conditions Min Typ Max Unit
Input Under Voltage Lockout
(hardware controlled)
Threshold, VUVLO Rising edge 3.8 4.1 4.4 V
Hysteresis 0.24 V
Input Over Voltage Lockout
(hardware controlled) Threshold, VOVLO Input rising 14.3 15.2 16 V
Input Turn-On Voltage
Threshold 4.35 V
Threshold range PMBus confi gurable
VIN_ON 0-14.7 V
Input Turn-Off Voltage
Threshold 3.8 V
Threshold range PMBus confi gurable
VIN_OFF 0-14.7 V
Input Under/Over Voltage
Protection,
IUVP/ IOVP
IUVP threshold 4.1 V
IUVP threshold range PMBus confi gurable
VIN_UV_FAULT_LIMIT 0-14.7 V
IOVP threshold 14.4 V
IOVP threshold range PMBus confi gurable
VIN_OV_FAULT_LIMIT 0-14.7 V
Set point accuracy -150 150 mV
Fault response VIN_UV_FAULT_RESPONSE
VIN_OV_FAULT_RESPONSE
Shutdown, make continuous restarts at 700 ms
interval (hiccup). Note 3
Output voltage
Over/Under Voltage Protection,
OVP/UVP
UVP threshold 85 % VO
UVP threshold range PMBus confi gurable
VOUT_UV_FAULT_LIMIT 0-100 % VO
OVP threshold 115 % VO
OVP threshold range PMBus confi gurable
VOUT_OV_FAULT_LIMIT 100-115 % VO
Fault response VOUT_UV_FAULT_RESPONSE
VOUT_OV_FAULT_RESPONSE
Shutdown, make continuous restarts at 700 ms
interval (hiccup). Note 3
Over Current Protection,
OCP
OCP threshold Set value 24 A
OCP threshold range PMBus confi gurable
IOUT_OC_FAULT_LIMIT 0-24 A
Fault response IOUT_OC_FAULT_RESPONSE Shutdown, make continuous restarts at 700 ms
interval (hiccup). Note 3.
Over Temperature Protection,
OTP
OTP threshold Note 4 120 °C
OTP threshold range PMBus confi gurable
OT_FAULT_LIMIT -40…+120 °C
OTP hysteresis PMBus confi gurable 15 °C
Fault response OT_FAULT_RESPONSE Shutdown, make continuous restarts at 700 ms
interval (hiccup). Note 3
Over Temperature Shutdown
(hardware controlled)
Threshold Note 4 150 °C
Hysteresis 20 °C
Accuracy ±20 °C
VOL Logic output low signal level
SCL, SDA, SYNC, SALERT, PG
Sink/source current = 4 mA
0.4 V
VOH Logic output high signal level 2.8 V
IOL Logic output low sink current 4mA
IOH Logic output high source current 4mA
VIL Logic input low threshold SCL, SDA, CTRL, SYNC 0.8 V
VIH Logic input high threshold 2 V
IIL_CTRL Logic input low sink current CTRL 0.5 mA
II_LEAK Logic leakage current SCL, SDA, SYNC, SALERT, PG 10 uA
fSMB SMBus Operating frequency 400 kHz
TBUF SMBus Bus free time STOP bit to START bit
See section SMBus – Timing 1.3 µs
tset SMBus SDA setup time from SCL 100 ns
thold SMBus SDA hold time from SCL 300 ns
SMBus START/STOP condition setup/hold time from SCL 600 ns
Tlow SCL low period 1.3 µs
Thigh SCL high period 0.6 µs
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 4 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
Note 1. Value refers to total (internal + external) effective output capacitance. Capacitance derating with VO typical for
ceramic capacitors (bias characteristics) and temperature variations must be considered for the external capacitor(s).
See section External Output Capacitors.
Note 2. A switching frequency close to 475 kHz should not be used since this frequency represents a boundary of
two operational modes of the product. There are confi guration changes to consider when changing the switching
frequency, see section Switching Frequency.
Note 3.The restart interval is confi gurable between 100ms and 700ms in 100ms steps. Severe overcurrent faults
occurring with VO > 2.5V may result in a restart interval of 1200 ms instead of the confi gured value. See operating
conditions for other fault response alternatives.
Note 4. Temperature measured internally at temperature position P3. See section Over Temperature Protection.
Note 5. Same specifi cation applies for soft-stop and TOFF_DELAY/TOFF_FALL if enabled. The internal ramp and delay
generators can only achieve certain discrete timing values. A written TON/OFF_DELAY or TON/OFF_RISE value will
be rounded to the closest achievable value, thus a command read-back provides the actual set value. See section
Soft-Start and Soft-Stop.
Note 6.Larger tracking input range is provided by external resistor divider, see section Voltage Tracking.
Note 7. At VO > 3.5V and VO / VI in the approximate range 55-70% there may be an additional current monitoring
inaccuracy on the negative side up to -1 A.
Characteristics Conditions Min Typ Max Unit
Initialization time From VI > VUVLO to ready to be enabled 23 ms
Soft-start
On Delay Time
Note 5
Delay duration 10 ms
Delay duration range PMBus confi gurable
TON_DELAY 1-145 ms
Delay set resolution 0.6 ms
Delay set accuracy TON_DELAY value sent versus read-
back ±0.5 x Delay set resolution ms
Delay accuracy Actual delay duration versus TON_DE-
LAY read-back ±0.8 ms
Soft-start
Rise Time
(0-100% of VO)
Note 5
Ramp duration 10 ms
Ramp duration range PMBus confi gurable
TON_RISE 1 - (255 x Ramp set resolution) ms
Ramp set resolution Varies with VO0.4 1 ms
Ramp set accuracy TON_RISE value sent versus read-back ±0.5 x Ramp set resolution ms
Ramp time accuracy Actual ramp duration versus TON_RISE
read-back ±10 µs
Compensation Calibration
Signal duration 5ms
Signal level
VO = 0.6 V 3.5
% VO
VO = 1.2 – 1.8 V 2.5
Power Good , PG
PG threshold
Rising 90 % VO
Falling 85 % VO
Tracking mode
See section Voltage Tracking 450 mV
PG thresholds range
(Non-tracking only)
PMBus confi gurable
POWER_GOOD_ON
POWER_GOOD_OFF
0 100 % VO
PG delay
Enabled compensation calibration
(default)
From VO reaching target to PG assertion 11 ms
Tracking mode
See section Voltage Tracking 20 ms
PG delay
Disabled compensation calibration
From VO reaching PG rising threshold to
PG assertion 0ms
Tracking mode
See section Voltage Tracking 20 ms
Tracking Input Voltage Range CS_VTRK pin
Note 6 0 1.2 V
Tracking Accuracy -100 100 mV
Monitoring accuracy
Input voltage
READ_VIN ±3 % VI
Output voltage
READ_VOUT ±1 % VO
Output current
READ_IOUT
Note 7
TP1 = 0-95°C, VI = 4.5-14 V,
IO > 5 A ±8.5 % IO
TP1 = 0-95°C, VI = 4.5-14 V,
IO < 5 A ±0.4 A
Temperature
READ_
TEMPERATURE_1
Note 4 -5 5 °C
Duty cycle
READ_DUTY_CYCLE
Duty cycle < 10% -3 3 %
Duty cycle > 10% -1 ±0.5 1 %
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 5 of 28
www.murata-ps.com/support
Murcia Power Solutions flDkami
[Al
mum
Typical Characteristics,VO= 0.6 V
Default Configuration, TP1 = +25°C
Efficiency Power Dissipation
Efficiency vs. load current and input voltage. Dissipated power vs. load current and input voltage.
Output Current Derating Current Limit Characteristics
A
vailable load current vs. ambient air temperature and airflow at
VI= 12 V. See section Thermal Consideration.
Output voltage vs. load current and input voltage.
Output Ripple and Noise Transient Response
Fundamental output voltage ripple at VI = 12 V, CO = 3x100 μF, IO=18A.
Scale: 5 mV/div, 1 μs/div, 20 MHz bandwidth.
See section Output Ripple and Noise.
Output voltage response to load current step change (4.5–13.5–4.5 A) at
VI = 12 V, C O = 3x100 μF + 270 μF/10m. Default compensation settings.
Scale: 50 mV/div, 5 A/div, 100 μs/div.
50
55
60
65
70
75
80
85
90
0 2 4 6 8 10 12 14 16 18
[%]
[A]
VI
4.5 V
5 V
12 V
14 V
0.0
1.0
2.0
3.0
4.0
0 3 6 9 12 15 18
[W]
[A]
VI
4.5 V
5 V
12 V
14 V
0
2
4
6
8
10
12
14
16
18
75 80 85 90 95 100 105
[A]
[°C]
3.0 m/s
2.0 m/s
1.0 m/s
0.5 m/s
Nat. Conv.
0.00
0.15
0.30
0.45
0.60
0.75
19 20 21 22 23 24
[V]
[A]
VI
4.5 V
5 V
12 V
14 V
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 6 of 28
www.murata-ps.com/support
Mm“. My salmon; ”0km
Typical Characteristics,VO= 1.2 V
Default Configuration, TP1 = +25°C
Efficiency Power Dissipation
Efficiency vs. load current and input voltage. Dissipated power vs. load current and input voltage.
Output Current Derating Current Limit Characteristics
A
vailable load current vs. ambient air temperature and airflow at
VI= 12 V. See section Thermal Consideration.
Output voltage vs. load current and input voltage.
Output Ripple and Noise Transient Response
Fundamental output voltage ripple at VI =12V,C
O = 3x100 μF, IO=18A.
Scale: 5 mV/div, 1 μs/div, 20 MHz bandwidth.
See section Output Ripple and Noise.
Output voltage response to load current step change (4.5–13.5–4.5 A) at
VI = 12 V, C O = 3x100 μF + 270 μF/10m. Default compensation settings.
Scale: 50 mV/div, 5 A/div, 100 μs/div.
55
60
65
70
75
80
85
90
95
0 2 4 6 8 10 12 14 16 18
[%]
[A]
VI
4.5 V
5 V
12 V
14 V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 3 6 9 12 15 18
[W]
[A]
VI
4.5 V
5 V
12 V
14 V
0
2
4
6
8
10
12
14
16
18
75 80 85 90 95 100 105
[A]
[°C]
3.0 m/s
2.0 m/s
1.0 m/s
0.5 m/s
Nat. Conv.
0.00
0.20
0.40
0.60
0.80
1.00
1.20
18 19 20 21 22 23
[V]
[A]
VI
4.5 V
5 V
12 V
14 V
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 7 of 28
www.murata-ps.com/support
Murcia Power Solutions flDkami
\\
\\
r 1
[ 1
mum
Typical Characteristics,VO= 1.8 V
Default Configuration, TP1 = +25°C
Efficiency Power Dissipation
Efficiency vs. load current and input voltage. Dissipated power vs. load current and input voltage.
Output Current Derating Current Limit Characteristics
A
vailable load current vs. ambient air temperature and airflow at
VI= 12 V. See section Thermal Consideration.
Output voltage vs. load current and input voltage.
Output Ripple and Noise Transient Response
Fundamental output voltage ripple at VI =12V,C
O = 3x100 μF, IO=18 A.
Scale: 5 mV/div, 1 μs/div, 20 MHz bandwidth.
See section Output Ripple and Noise.
Output voltage response to load current step change (4.5–13.5–4.5 A) at
VI = 12 V, C O = 3x100 μF + 270 μF/10m. Default compensation settings.
Scale: 50 mV/div, 5 A/div, 100 μs/div.
70
75
80
85
90
95
100
0 2 4 6 8 10 12 14 16 18
[%]
[
A
]
VI
4.5 V
5 V
12 V
14 V
0.0
1.0
2.0
3.0
4.0
0 3 6 9 12 15 18
[W]
[
A
]
VI
4.5 V
5 V
12 V
14 V
0
2
4
6
8
10
12
14
16
18
75 80 85 90 95 100
[A]
[°C]
3.0 m/s
2.0 m/s
1.0 m/s
0.5 m/s
Nat. Conv.
0.0
0.4
0.8
1.2
1.6
2.0
19 20 21 22 23
[V]
[A]
VI
4.5 V
5 V
12 V
14 V
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 8 of 28
www.murata-ps.com/support
Murofo Power Solutions fikami
Typical Characteristics
Default Configuration, TP1 = +25°C, VO= 1.8 V
Start-up by input source Shut-down by input source
Start-up enabled by applying VI. TON_DELAY = TON_RISE = 10 ms (default).
VI = 12 V, IO = max IO, PG pulled up to VO.
Scale: 10 or 1 V/div, 10 ms/div.
Shut-down by removing VI.
VI = 12 V, IO = max IO, PG pulled up to VO.
Scale: 10 or 1 V/div, 1 ms/div.
Start-up by CTRL signal Shutdown by CTRL signal
Start-up enabled by CTRL signal. TON_DELAY = TON_RISE = 10 ms (default).
VI = 12 V, IO = max IO, PG pulled up to VO.
Scale: 2 or 1 V/div, 10 ms/div.
Shut-down by CTRL signal.
VI = 12 V, IO = max IO, PG pulled up to VO.
Scale: 2 or 1 V/div, 1 ms/div.
VI
VO
PG
CTRL
VO
PG
VI
VO
PG
CTRL
VO
PG
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 9 of 28
www.murata-ps.com/support
Mm“. My salmon; fikaml
‘ Ceramn:
Caps-mar
__ _ o ‘ up
2x33511512
09:90
’—'|
|
—|
uni [aw]
EMC Specifi cation
Conducted EMI is measured according to the test set-up below. The
fundamental switching frequency is 600 kHz.
Layout Recommendations
The radiated EMI performance of the product will depend on the PWB
layout and ground layer design. It is also important to consider the stand-
off of the product. If a ground layer is used, it should be connected to the
output of the product and the equipment ground or chassis.
A ground layer will increase the stray capacitance in the PWB and
improve the high frequency EMC performance.
Output Ripple and Noise
Output ripple and noise is measured according to fi gure below.
A 50 mm conductor works as a small inductor forming together
with the two capacitances a damped fi lter.
The digital compensation of the product is designed to automatically
provide stability, accurate line and load regulation and good transient
performance for a wide range of operating conditions (switching
frequency, input voltage, output voltage, output capacitance). Inherent
from the implementation and normal to the product there will be some
low-frequency noise or wander at the output, in addition to the fundamen-
tal switching frequency output ripple. The total output ripple and noise is
maintained at a low level.
Conducted EMI Input terminal value (typical for default confi guration)
EMI without fi lter
Test set-up conducted emission, power lead
C1
RF Current probe
1kHz – 50MHz
analyzer
To spectrum
DUT
load
Resistive
Battery
supply
800mm
C1 = 10uF / 600VDC
Feed- Thru RF capacitor
200mm
50mm
Output ripple and noise test set-up
Vout
S
S
GND
Ceramic
Capacitor
0.1 μF
Tantalum
Capacitor
10 μF
Load
50 mm conductor
50 mm conductor
BNC-contact to
oscilloscope
co
Example of low frequency noise at the output
VI=12 V, VO=3.3 V, IO=12 A, CO=3x100 μF,10 mV/div, 50 μs/div
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 10 of 28
www.murata-ps.com/support
Murofo Power Solutions mkami
Operating information
Power Management Overview
This product is equipped with a PMBus™ interface. The product
incorporates a wide range of readable and confi gurable power man-
agement features that are simple to implement
with a minimum of external components. Additionally, the product
includes protection features that continuously safeguard the load from
damage due to unexpected system faults. A fault is also shown as an
alert on the SALERT pin.
The product is delivered with a default confi guration suitable for a
wide range of operation in terms of input voltage, output voltage, and
load. The confi guration is stored in an internal Non-Volatile Memory
(NVM). All power management functions can be reconfi gured using
the PMBus™ interface. Please contact your local Murata Power
Solutions representative for design support of custom confi gura-
tions or appropriate SW tools for design and download of your own
confi gurations.
Input Under Voltage Lockout, UVLO
The product provides a non-confi gurable under voltage lockout (UVLO)
circuit that monitors the internal supply of the converter. Below a cer-
tain input voltage level the internal supply will be too low for proper
operation and the product will be in under voltage lockout, not switch-
ing or responding to the CTRL pin or to PMBus™ commands.
Input Over Voltage Lockout, OVLO
The product provides a non-confi gurable over voltage lockout (OVLO)
circuit that will shut down the product when the input voltage rises
above a certain level. The product will not switch, respond to the CTRL
pin or to PMBus™ commands when being in over voltage lockout.
Input Turn-On and Turn-Off Voltage
The product monitors the input voltage and will turn-on and turn-off
the output at confi gured levels (assuming the product is enabled by
CTRL pin or PMBus™). The default turn-on input voltage level is 4.35
V whereas the corresponding turn-off input voltage level is 3.8 V. The
turn-on and turn-off levels may be reconfi gured using the PMBus™
commands VIN_ON and VIN_OFF.
Input Under Voltage Protection (IUVP)
The product monitors the input voltage continously and will respond
as confi gured when the input voltage falls below the confi gured
threshold level. The product can respond in a number of ways as
follows:
1. Continue operating without interruption.
2. Continue operating for a given delay period, followed by an output
voltage shutdown if the fault still exists.
3. Immediate and defi nite shutdown of output voltage until the fault is
cleared by PMBus™ or the output voltage is re-enabled.
4. Immediate shutdown of output voltage while the fault is present.
Operation resumes and the output is enabled when the fault condi-
tion no longer exists.
The default response is 4. The IUVP function can be reconfi g-
ured using the PMBus™ commands VIN_UV_FAULT_LIMIT and
VIN_UV_FAULT_RESPONSE.
Input Over Voltage Protection (IOVP)
The product monitors the input voltage continously and will respond
as confi gured when the input voltage rises above the confi gured
threshold level. Refer to section “Input Under Voltage Protection” for
response confi guration options and default setting.
Input and Output Impedance
The impedance of both the input source and the load will interact with
the impedance of the product. It is important that the input source
has low characteristic impedance. If the input voltage source contains
signifi cant inductance, the addition of a capacitor with low ESR at the
input of the product will ensure stable operation.
External Input Capacitors
The input ripple RMS current in a buck converter can be estimated to
Eq. 1.
where is the output load current and is the duty cycle. The maxi
mum load ripple current becomes . The ripple current is
divided into three parts, i.e., currents in the input source, external
input capacitor, and internal input capacitor. How the current is
divided depends on the impedance of the input source, ESR and
capacitance values in the capacitors.
For most applications non-tantalum capacitors are preferred due
to the robustness of such capacitors to accommodate high inrush
currents of systems being powered from very low impedance sources.
It is recommended to use a combination of ceramic capacitors and
low-ESR electrolytic/polymer bulk capacitors. The low ESR of ceramic
capacitors effectively limits the input ripple voltage level, while the
bulk capacitance minimizes deviations in the input voltage at large
load transients.
It is recommended to use at least 47 uF of ceramic input capaci-
tance. At duty cycles between 25% and 75% where the input ripple
current increases (see Eq. 1), additional ceramic capacitance will help
to keep the input ripple voltage low. The required bulk capacitance
depends on the impedance of the input source and the load tran-
sient levels at the output. In general a low-ESR bulk capacitor of at
least 100 uF is recommended. The larger the duty cycle is, the larger
impact an output load step will have on the input side, thus the larger
bulk capacitance is required to limit the input voltage deviation.
If several products are connected in a phase spreading setup the
amount of input capacitance per product can be reduced.
Input Capacitors must be placed closely and with low impedance
connections to the VIN and GND pins in order to be effective.
External Output Capacitors
The output capacitor requirement depends on two considerations;
output ripple voltage and load transient response. To achieve low
loadinputRMS
1
,
load
I
D
2
load
I
DD
II
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 11 of 28
www.murata-ps.com/support
Murofo Power Solutions fikami
capacitance is required. The limit of COUT_low must be followed in
order to guarantee stability.
Note that Eq. 2 and Eq. 3 and the chart above refer to the total
capacitance at the output, thus including both the capacitance internal
to the product and the external capacitance applied in the application.
The internal output capacitance is listed in the Electrical Characteris-
tics table.
Note also that Eq. 2 and Eq. 3 and the chart refers to the effective
capacitance, not taking into account the capacitance derating that
applies for ceramic capacitors with increased voltage or temperature
variations.
In cases where the external output fi lter includes an inductor (form-
ing a pi fi lter) according to the picture below, the following must be
considered.
In order for the compensation calibration (see next sections) to give
a reliable result, the following condition should be fulfi lled:
where FLC_EXT is the resonance frequency of the external fi lter and
FSW is the switching frequency. If there are multiple pi fi lters in paral-
lel on the output, giving a more complex transfer function with several
resonance peaks, each of the peaks should be above FSW/10.
If this condition is not fulfi lled it is recommended to disable com-
pensation calibration and set FLC manually in COMP_MODEL (see
next sections). Please contact your Murata Power Solutions sales
representative for further support.
For the OKDL products, it is recommended that the remote sense
connections are made at a point before the external inductor, as illus-
trated in the drawing above.
Dynamic Loop Compensation (DLC)
The typical design of regulated power converters includes a con-
trol function with a feedback loop that can be closed using either
analog or digital circuits. The feedback loop is required to provide a
stable output voltage, but should be optimized for the output fi lter to
maintain output voltage regulation during transient conditions such
as sudden changes in output current and/or input voltage. Digitally
controlled converters allow one to optimize loop parameters without
the need to change components on the board, however, optimization
ripple voltage, the output capacitor bank must have a low ESR value,
which is achieved with ceramic output capacitors. A small output
voltage deviation during load transients is achieved by using a larger
amount of capacitance. Designs with smaller load transients can use
fewer capacitors and designs with more dynamic load content will
require more load capacitors to achieve a small output deviation.
Improved transient response can also be achieved by adjusting the
settings of the control loop of the product (see section Compensation
Implementation).
It is recommended to locate low ESR ceramic and low ESR electro-
lytic/polymer capacitors as close to the load as possible, using several
capacitors in parallel to lower the effective ESR. It is important to use
low resistance and low inductance PCB layouts and cabling in order
for capacitance to be effective.
The control loop of the product is optimized to operate with low-
ESR output capacitors and is capable of achieving a fast loop transient
response with a reduced amount of capacitance. The effective output
capacitance is recommended to be in the range [COUT_low, COUT_
high] according to equations Eq. 2 and Eq. 3 below, where FSW is the
switching frequency. The compensation implementation of the product
is optimized for this range.
Eq. 2.
Eq. 3.
The product permits a large range of output capacitance, thus
capacitance above COUT_high is acceptable. This capability is impor-
tant in applications where the output capacitance may be unknown or
not well controlled or in applications where a large amount of output
2
7
_
2.6 01
SW
lowOUT
F
C
2
7
_
6101
SW
highOUT
F
C
Effective total output capacitance limits vs switching frequency.
10
100
1000
10000
300 400 500 600 700 800 900 1000
[ȝF]
[kHz]
Permissible
Recommended
UNSTABLE
External output fi lter with inductor (pi fi lter).
Vout
S
S
GND
OKDL
Load
COLEXT CEXT
10
2
1
_SW
TXETXE
EXTLC
F
F!
S
L C
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 12 of 28
www.murata-ps.com/support
Mm“. My salmon; @kami
user. Note however, as soon as the output voltage is disabled, the FLC
value in COMP_MODEL will revert back to the corresponding value
stored in User NVM. Therefore, user values of COMP_MODEL should
be written to NVM, or, if written to RAM only, be written before each
time the output voltage is enabled. COMP_MODEL should only be
changed in RAM while the output voltage is disabled.
By setting bit 2 in ADAPTIVE_MODE a STORE_USER_ALL command
will automatically be performed after the next calibration, effectively
storing the measured FLC value in COMP_MODEL 15:0 in NVM as the
FLC value for subsequent ramp-ups.
The table below shows an example of improvement in transient
response due to the compensation calibration, compared to using the
FLC_DEFAULT value.
Non-calibrated
compensation
Calibrated
compensation
Voltage deviation 53 mV 34 mV
Recovery time 50 µs 30 µs
The PMBus™ command ADAPTIVE_MODE provides the user differ-
ent options for compensation calibration:
1. Calibration is performed once after each ramp-up (default). (ADAP-
TIVE_MODE = 0x024B).
2. Calibration is performed once after fi rst ramp-up after input volt-
age is applied (ADAPTIVE_MODE = 0x124B).
3. Calibration is performed continuously after ramp-up at ~800 ms
interval (ADAPTIVE_MODE = 0x034B).
4. Calibration is disabled (ADAPTIVE_MODE = 0x004B). The FLC value
stored in bits 15:0 in COMP_MODEL will be applied.
5. Calibration is performed continuously in response to a PMBus™
command. Controlled by setting/clearing bit 8 in ADAPTIVE_MODE
during operation.
Compensation may be set more or less aggressive by adjusting the
feedback gain factor, controlled by the PMBus™ command FEED-
BACK_EFFORT. This parameter is proportional to the open loop gain
of the system. Increasing the gain, i.e the control effort, will reduce
the voltage deviation at load transients, at the expense of somewhat
increased jitter and noise on the output. Users also have access to
can still be challenging because the key parameters of the output
fi lter include parasitic impedances in the PCB and the often distrib-
uted fi lter components themselves.
Dynamic Loop Compensation has been developed to solve the
problem of compensation for a converter with a diffi cult to defi ne
output fi lter. This task is achieved by utilization of algorithms that can
characterize an arbitrary output fi lter based on behavior of the output
voltage in response to a disturbance initiated by the algorithm, or
occurring due to the changes in operating conditions, and automati-
cally adjust feedback loop parameters to match the output fi lter.
Details of the algorithm that is used to characterize an output fi lter
and the different operational modes can be found in the following
sections.
Compensation Implementation
Unlike PID-based digital power regulators the product uses a state-
space model based algorithm that is valid for both the small- and
large-signal response and accounts for duty-cycle saturation effects.
This eliminates the need for users to determine and set thresholds for
transitioning from linear to nonlinear modes. These capabilities result
in fast loop transient response and the possibility of reducing the
number of output capacitors.
Compensation calibration is when the resonance frequency FLC
of the output stage is measured. The FLC value is used to automati-
cally control the compensation. During ramp-up of the output voltage,
robust and low bandwidth default compensation settings are used
based on the default FLC value assigned by bits 15:0 in PMBus™
command COMP_MODEL. If the switching frequency is changed the
default FLC should be adjusted according to Eq. 4 to maintain robust
settings.
Eq. 4.
It is possible for the user to write any FLC value in COMP_MODEL
to be used during ramp-up. This is useful in cases where improved
dynamic performance is needed during ramp-up. User assignment
of FLC in COMP_MODEL is also needed when calibration is disabled,
since in such case the FLC value used during ramp-up will continue to
be used when ramp-up has fi nished.
When calibration is enabled (default), an AC low amplitude meas-
urement signal is applied on the output immediately after ramp-up
has fi nished. See Electrical Characteristics table for a specifi cation of
this measurement signal. During calibration the resonant frequency
FLC of the power stage is measured. From the result an internal non-
linear model is constructed to optimize the bandwidth and transient
response of the product. Pole locations of the closed system are
automatically selected based on switching frequency, measured FLC
and the output voltage level.
After each performed calibration, bits 15:0 in COMP_MODEL are
updated with measured FLC, thus this value can be read out by the
32
_SW
DEFAULTLC
F
F
Load transient performance non-calibrated compensation with FLC_DEFAULT vs.
calibrated compensation.
VI=12 V, VO=1.2 V, CO = 3x100 µF + 270µF/10mΩ, load step 3-9-3 A, 1 A/us.
Time
Output
Voltage
Compensation calibration
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 13 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
Remote Sense
The product has remote sense that can be used to compensate for
voltage drops between the output and the point of load. The sense
traces should be located close to the PWB ground layer to reduce
noise susceptibility. Due to derating of internal output capacitance
the voltage drop should be kept below VDROPMAX = (5.25 – VOUT) /
2. A large voltage drop will impact the electrical performance of the
regulator. If the remote sense is not needed +S must be connected to
VOUT and −S must be connected to GND.
Output Voltage Control
To control the output voltage the product features both a remote
control input through the CTRL pin and a PMBus™ enable function by
the command OPERATION. It is also possible to confi gure the output to
be always on.
By default the output is controlled by the CTRL pin only. The output
voltage control can be reconfi gured using the PMBus™ command
ON_OFF_CONFIG.
Remote Control
The product is equipped with a
remote control function, i.e., the
CTRL pin. The remote control can
be connected to either the primary
negative input connection (GND)
or an external voltage (Vext). See
Absolute Maximum Rating for
maximum voltage level allowed at
the CTRL pin.
The CTRL function allows the product to be turned on/off by an
external device like a semiconductor or mechanical switch.
The CTRL pin has an internal 6.8 kΩ pull-up resistor to 3.3 V. The
external device must provide a minimum required sink current to
guarantee a voltage not higher than the logic low threshold level (see
the PMBus™ command ZETAP, which corresponds to the damping
ratio of the closed loop system. By default the product uses 0.5 as
the feedback gain factor and 1.5 for damping ratio, to target a system
bandwidth of 10% of the switching frequency.
In some operating conditions at low output voltages, it is possible to
enhance the recovery time at load release by enabling Negative Duty
Cycle by PMBus™ command LOOP_CONFIG.
The graphs below exemplify the impact on load transient perfor-
mance when adjusting the feedback gain factor, the damping ratio
and the Negative Duty Cycle feature.
VI=12 V, VO=1.2 V, load step 3-9-3 A,1 A/us.
20
30
40
50
60
70
0.20.30.40.50.60.70.80.91.0
[mV]
FEEDBACK_EFFORT
CO=3x100μF+270μF/10mCO=3x100μF
Voltage deviation vs. FEEDBACK_EFFORT setting.
Recovery time to within 1% of VO vs. ZETAP setting.
VI=12 V, VO=1.2 V, CO= 3x100 μF + 270μF/10m, load step 3-9-3 A,1 A/us.
15.0
18.0
21.0
24.0
27.0
30.0
1.01.11.21.31.41.51.61.71.8
[us]
ZETAP
Load release response at enabled/disabled Negative Duty Cycle at low output voltage.
VI=12 V, VO=0.6 V, CO= 3x100 μF + 270μF/10m, load step 3-9-3 A,1 A/us.
FEEDBACK_EFFORT = 0.8, ZETAP = 1.5.
Scale: 20 mV/div, 5 A/div, 10 μs/div.
Enabled
Disabled
CTRL
GND
Vext
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 14 of 28
www.murata-ps.com/support
Mm“. My salmon; fikaml
[ VSET
PREF
Output Voltage Trim
The actual output voltage can be trimmed to optimize performance
of a specifi c load by setting a non-zero value for PMBus™ command
VOUT_TRIM. The value of VOUT_TRIM is summed with VOUT_COM-
MAND, allowing for multiple products to be commanded to a common
nominal value, but with slight adjustments per load.
Output Voltage Range Limitation
The output voltage is by default limited to the least of 5.5 V or 110%
of the nominal output voltage, where the nominal output voltage is
defi ned by pin-strap or by VOUT_COMMAND in Non-Volatile Memory
(see section Initialization Procedure). This protects the load from an
over voltage due to an accidentally written wrong VOUT_COMMAND.
The limitation applies to the regulated output voltage, rather than the
internal value of VOUT_COMMAND. The output voltage limit can be
reconfi gured using the PMBus™ command VOUT_MAX.
Output Over Voltage Protection (OVP)
The product includes over voltage limiting circuitry for protection of
the load. The default OVP limit is 15% above the nominal output volt-
age. The product can be confi gured to respond in different ways to the
output voltage exceeding the OVP limit:
1. Continue operating without interruption.
2. Continue operating for a given delay period, followed by an output
voltage shutdown if the fault still exists.
3. Immediate and defi nite shutdown of output voltage until the fault is
cleared by PMBus™ or the output voltage is re-enabled.
4. Immediate shutdown of output voltage while the fault is present.
Operation resumes and the output is enabled when the fault condi-
tion no longer exists.
The default response is 4. The OVP limit and fault response can be
reconfi gured using the PMBus™ commands VOUT_OV_FAULT_LIMIT
and VOUT_OV_FAULT_RESPONSE.
Output Under Voltage Protection (UVP)
The product includes output under voltage limiting circuitry for
protection of the load. The default UVP limit is 15% below the nominal
output voltage. Refer to section “Output Over Voltage Protection” for
response confi guration options and default setting.
Power Good
PG (Power Good) is an active high open drain output used to indicate
when the product is ready to provide regulated output voltage to the
load. During startup and during a fault condition, PG is held low.
By default, PG is asserted high after the output has ramped to a
voltage above 90% of the nominal voltage and a successful compen-
sation calibration has completed.
Electrical Characteristics). When the CTRL pin is left open, the voltage
generated on the CTRL pin is 3.3 V.
By default the product provides “positive logic” RC and will turn
on when the CTRL pin is left open and turn off when the CTRL pin is
applied to GND. It is possible to confi gure “negative logic” instead by
using the PMBus™ command ON_OFF_CONFIG.
If the device is to be synchronized to an external clock source, the
clock frequency must be stable prior to asserting the CTRL pin.
Output Voltage Adjust using Pin-strap Resistor
Using an external Pin-strap resis-
tor, RSET, the output voltage can
be set in the range 0.6 V to 5.0
V at 16 different levels shown
in the table below. The resistor
should be applied between the
VSET pin and the PREF pin.
RSET also sets the maximum output voltage; see section “Output
Voltage Range Limitation”. The resistor is sensed only at the applica-
tion of input voltage. Changing the resistor value during normal opera-
tion will not change the output voltage. The input voltage must be at
least 1 V larger than the output voltage in order to deliver the correct
output voltage. See Ordering Information for output voltage range.
The following table shows recommended resistor values for RSET.
Maximum 1% tolerance resistors are required.
Output Voltage Adjust using PMBus™
The output voltage set by pin-strap can be overridden using the
PMBus™ command VOUT_COMMAND. See Electrical Specifi cation for
adjustment range.
Voltage Margining Up/Down
Using the PMBus™ interface it is possible to adjust the output
higher or lower than its nominal voltage setting in order to determine
whether the load device is capable of operating over its specifi ed
supply voltage range. This provides a convenient method for dynami-
cally testing the operation of the load circuit over its supply margin
or range. It can also be used to verify the function of supply voltage
supervisors. Margin limits of the nominal output voltage ±5% are
default, but the margin limits can be reconfi gured using the PMBus™
commands VOUT_MARGIN_LOW, VOUT_MARGIN_HIGH. Margining is
activated by the command OPERATION.
VSET
RSET
PREF
VOUT [V] RSET[k] VOUT [V] RSET[k]
0.60 5.11 1.05 17.8
0.70 6.19 1.10 21.5
0.75 7.15 1.20 26.1
0.80 8.25 1.50 31.6
0.85 9.53 1.80 38.3
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 15 of 28
www.murata-ps.com/support
Mm“. My salmon; ”0km
By default, PG is deasserted if the output voltage falls below 85% of
the nominal voltage. These limits may be changed using the PMBus™
commands POWER_GOOD_ON and POWER_GOOD_OFF.
The PG output is not defi ned during ramp up of the input voltage
due to the initialization of the product.
Over Current Protection (OCP)
The product includes robust current limiting circuitry for protection
at continuous overload. After ramp-up is complete the product can
detect an output overload/short condition. The following OCP response
options are available:
1. Continue operating without interruption (this could result in perma-
nent damage to the product).
2. Immediate and defi nite shutdown of output voltage until the fault is
cleared by PMBus™ or the output voltage is re-enabled.
3. Immediate shutdown of output voltage followed by continous
restart attempts of the output voltage with a preset interval
(“hiccup” mode).
The default response from an over current fault is 3. Note that
delayed shutdown is not supported. The load distribution should be
designed for the maximum output short circuit current specifi ed. The
OCP limit and response can be reconfi gured using the PMBus™ com-
mands IOUT_OC_FAULT_LIMIT and IOUT_OC_FAULT_RESPONSE.
If option 2 above is to be used, the TON_MAX_FAULT_RESPONSE
setting should match the setting of IOUT_OC_FAULT_RESPONSE in
order to make sure that no restart attempts occur.
Switching Frequency
The default switching frequency yields optimal performance. The
switching frequency can be re-confi gured in a certain range using the
PMBus™ command FREQUENCY_SWITCH. Refer to Electrical Specifi -
cation for default switching frequency and range.
If changing the switching frequency more than +/-10% from the
default value, the following should be considered to maintain reliable
operation:
The default FLC value in COMP_MODEL should be adjusted, see section
Compensation Implementation.
Adjustment of the fi xedDTR and fi xedDTF values in DEADTIME_GCTRL may
be required, for higher switching frequencies in particular.
Changing the switching frequency will affect effi ciency/power dis-
sipation, load transient response and output ripple.
Synchronization
The product may be synchronized with an external clock to eliminate
beat noise on the input and output voltage lines by connecting the
clock source to the SYNC pin. Synchronization can also be utilized for
phase spreading, described in section Phase Spreading.
The clock frequency of the external clock source must be stable
prior to enabling the output voltage. Further, the PMBus™ command
FREQUENCY_SWITCH must be set to a value close to the frequency of
the external clock prior to enabling the output voltage, in order to set
the internal controller in proper operational mode.
The product automatically checks for a clock signal on the SYNC
pin when input power is applied and when the output is enabled. If
no incoming clock signal is present, the product will use the internal
oscillator at the confi gued switching frequency.
In the event of a loss of the external clock signal during normal
operation, the product will automatically switch to the internal
oscillator and switch at a frequency close to the original SYNC input
frequency.
Phase Spreading
When multiple products share a common DC input supply, spreading
of the switching clock phase between the products can be utilized.
This dramatically reduces input capacitance requirements and effi -
ciency losses, since the peak current drawn from the input supply is
effectively spread out over the whole switch period. This requires that
the products are synchronized.
The phase offset is measured from the rising edge of the applied
external clock to the center of the PWM pulse as illustrated below.
By default the phase offset is controlled by the defi ned PMBus™
address (see section PMBus™ Interface) according to the table below.
This provides a way to confi gure phase spreading with up to eight dif-
ferent phase positions without using a PMBus™ command.

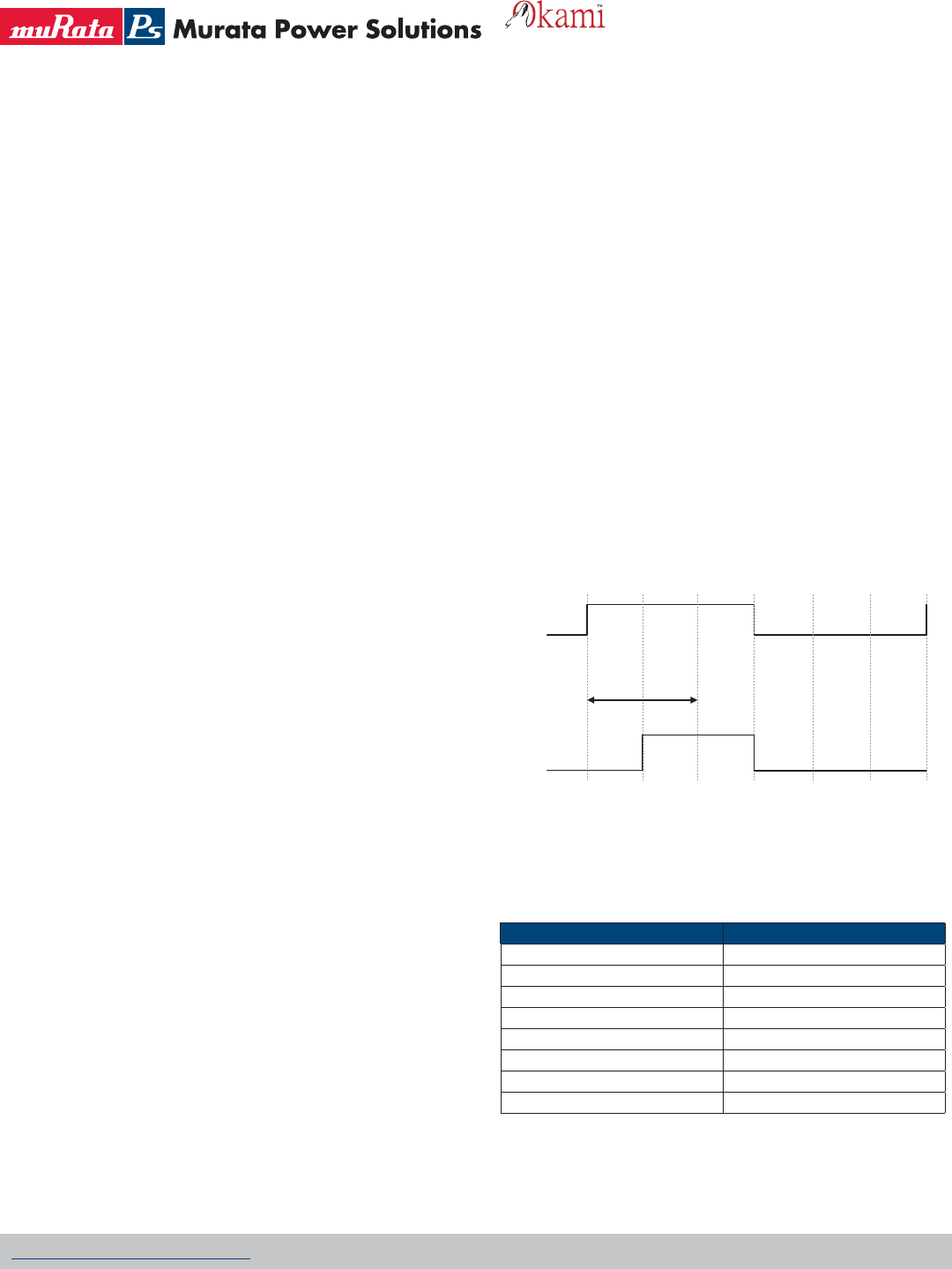

Illustration of phase offset.
SYNC
clock
PWM pulse
(V
O
/V
I
=0.33)
Phase offset = 120°
Set PMBus address Phase offset
xxxx000b 0°
xxxx001b 60°
xxxx010b 120°
xxxx011b 180°
xxxx100b 240°
xxxx101b 300°
xxxx110b 90°
xxxx111b 270°
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 16 of 28
www.murata-ps.com/support
Mm“. My salmon; ”0km
The default phase offset can be overridden by using the standard
PMBus™ command INTERLEAVE. The phase offset can then be defi ned as
Interleave_order is in the range 0-15. Number_in_group is in the
range 0-15 where a value of 0 means 16. The set resolution for the
phase offset is 360° / 128 ≈ 2.8°.
Giving the PMBus™ command INTERLEAVE a value of 0x0000 will
revert back to the default address controlled phase offset.
Murata Power Solutions provides software tools for convenient
confi guration of optimized phase spreading, allowing the amount of
input capacitance to be signifi cantly reduced.
Initialization Procedure
The product follows an internal initialization procedure after power is
applied to the VIN pin (refer to fi gure below):
1. Self test and memory check.
2. The address pin-strap resistors are measured and the associated
PMBus™ address is defi ned.
3. The output voltage pin-strap resistor is measured. The associated
output voltage level will be loaded into operational RAM memory,
unless an overriding PMBus™ command VOUT_COMMAND has
been explicitly written and stored in the User Non-Volatile Memory
(indicated by bit 0 in command STRAP_DISABLE).
4. Values stored in the User Non-Volatile Memory (NVM) are loaded
into operational RAM memory. For PMBus™ commands listed in
the table below, loaded values will be based on the output voltage
level loaded in step 3 above, unless the commands have been
explicitly written and stored in the User NVM.
5. Check for external clock signal at the SYNC pin and wait for lock if
used.
Once this procedure is completed and the initialization time has
passed (see Electrical Specifi cation), the output voltage is ready to be
enabled and the PMBus™ interface can be used.
Note the following implications of the initialization procedure:
If the RSET pin-strap resistance is changed, input voltage will have to be
cycled before the output voltage level is affected.
If VOUT_COMMAND is changed and stored to User NVM, input voltage will
have to be cycled before the output voltage related commands in the table
below are re-scaled according to the new output voltage level.
See section PMBus™ Interface for more information about the
Non-Volatile Memories (NVM) of the product.
Soft-start and Soft-stop
The soft-start and soft-stop control functionality allows the output
voltage to ramp-up and ramp-down with defi ned timing with respect
to the control of the output. This can be used to control inrush current
and manage supply sequencing of multiple controllers.
The rise time is the time taken for the output to ramp to its target
voltage while the fall time is the time taken for the output to ramp
down from its regulation voltage to less than 10% of that value. The
on delay time sets a delay from when the output is enabled until the
output voltage starts to ramp up. The off delay time sets a delay from
when the output is disabled until the output voltage starts to ramp down.
Soft-stop is disabled by default but may be enabled through the
PMBus™ command ON_OFF_CONFIG. The delay and ramp times
can be reconfi gured using the PMBus™ commands TON_DELAY,
TON_RISE, TOFF_DELAY and TOFF_FALL.
The internal delay generator can only achieve certain discrete
timing values. A written TON_DELAY/TOFF_DELAY value will be
rounded to the closest achievable value, thus a TON_DELAY/OFF_
DELAY read will provide the actual set value.
The internal ramp generator can only achieve certain discrete
timing values for a given combination of switch frequency, output volt-
age level, set ramp time and trim data. These values are close, but not
groupinNumber
orderInterleave
offsetPhase __
_
_()063 uqq
Loading of nominal output voltage level
User NVM
VOUT_COMMAND
PMBus Interface
VOUT_COMMAND
RAM
VOUT_COMMAND
VM
STRAP_DISABLE[0]=1?
NO
Pin-strap
VOUTRSET
YES
WRITE
READ
STRAP_DISABLE[0]=1
Vout related PMBus command Loaded value unless explicitly
written + stored to User NVM.
POWER_GOOD_ON 0.90 x loaded Vout level
POWER_GOOD_OFF 0.85 x loaded Vout level
VOUT_MAX 1.10 x loaded Vout level
VOUT_MARGIN_HIGH 1.05 x loaded Vout level
VOUT_MARGIN_LOW 0.95 x loaded Vout level
VOUT_OV_FAULT_LIMIT 1.15 x loaded Vout level
VOUT_UV_FAULT_LIMIT 0.85 x loaded Vout level
Illustration of Soft-Start and Soft-Stop
Output
control
V
OUT
On
delay
time Rise
time Fall
time
Off
delay
time
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 17 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
exactly the same, when any of the relevant parameters are altered.
A written TON_RISE/TOFF_FALL value will be rounded to the closest
achievable value, thus a TON_RISE/TOFF_FALL read will provide the
actual set value.
Refer to Electrical Specifi cation for default on delay time and rise
time and the confi gurability ranges and resolutions. The specifi cation
provided for soft-start applies also for soft-stop, if enabled.
Output Voltage Sequencing
A group of products may be confi gured to power up in a predeter-
mined sequence. This feature is especially useful when powering
advanced processors, FPGAs, and ASICs that require one supply to
reach its operating voltage prior to another. Multi-product sequencing
can be achieved by confi guring the start delay and rise time of each
device through the PMBus™ interface and by connecting the CTRL
pin of each product to a common enable signal.
Pre-Bias Startup Capability
Pre-bias startup often occurs in complex digital systems when current
from another power source is fed back through a dual-supply logic
component, such as FPGAs or ASICs. The product incorporates syn-
chronous rectifi ers, but will not sink current during startup, or turn off,
or whenever a fault shuts down the product in a pre-bias condition.
When the output is enabled the product checks the output for the
presence of pre-bias voltage. If the pre-bias voltage is above the output
overvoltage threshold the product will not attempt soft-start. If the pre-
bias voltage is less than 200 mV the soft-start is performed assuming
no pre-bias. If the pre-bias voltage is above 200 mV but below target
output voltage, the product ramps up the output voltage from the pre-
bias voltage to the target regulation as shown in the fi gure below.
Voltage Tracking
The product supports tracking of the output from a master voltage
applied to the CS_VTRK pin. To select the tracking mode, a resistance
≤ 4.22 kΩ must be connected between the VSET and PREF pins.
The tracking ratio used is controlled by an internal feedback divider
RDIV and an external resistive voltage divider (R1, R2) which is placed
from the supply being tracked to GND pins.
In tracking mode the output voltage is regulated to the lower of:
Eq. 5
or the output voltage defi ned by the PMBus™ command
VOUT_COMMAND.
RDIV is automatically selected based on the value of VOUT_COM-
MAND as shown in the table below. If VOUT_COMMAND is not defi ned
by the user, it will default to 5.25 V with RDIV= 0.20272.
For best tracking accuracy it is recommended that once the product
is powered up, the VOUT_COMMAND should not be changed so as to
cause a change to the operational RDIV. If such a change in VOUT_
COMMAND is required, the user should save the new value to User
Non-Volatile Memory (using STORE_USER_ALL command) and recycle
the input voltage to set a new RDIV operational value.
To simplify resistor selection it is recommended to fi x R1 at 10 kΩ
and use the following equation to determine R2:
Eq. 6
Illustration of Output Voltage Sequencing
Time
Voltage
V
OUT1
V
OUT2
Illustration of Pre-Bias Startup
Time
Soft-start
ramp time
Voltage
V
TRACK
(MASTER)
R2
CS_VTRK VOUT
VSET
PREF
OKDL
GND
R1
R
SET
R
SET
4.22 k
V
OUT
(SLAVE)
RDIV
max 1.2V
Tracking Mode Confi guration
2
1R
1R
RDIV
V
V
TRACK
OUT
u R
VOUT_COMMAND [V] RDIV
< 0.99 0.99547
0.99 to < 1.12 0.88222
1.12 to < 1.28 0.76897
1.28 to < 1.50 0.65572
1.50 to < 1.82 0.54247
1.82 to < 2.29 0.42922
2.29 to < 3.12 0.31597
3.12 to < 5.25 0.20272
VOUT_COMMAND not user defi ned => 5.25 0.20272
¨
¨
©
§
¸
¸
¹
·
¨
¨
©
§
u1
OUT
TRACK
VRDIV
V
R2(k:) = R1 u
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 18 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
R2 must be chosen so that the CS_VTRK input does not exceed 1.2 V.
As seen in Eq. 5, if the resistor-divider ratio from R1//R2 is chosen
such that it is equal to the operational RDIV, the output voltage follows
the tracking voltage coincidentally. For all other cases, the output volt-
age follows a ratiometric tracking. These two modes of tracking are
further described below.
1. Coincident tracking. Output voltage is ramped at the same
rate as the VTRACK voltage. To achieve coincident tracking the
desired output voltage should be set by the PMBus™ command
VOUT_COMMAND. R2 should be set so that R2 = R1 / RDIV – R1.
The output will stop ramping when the VOUT_COMMAND level is
reached. Since the voltage at the CS_VTRK pin must be below 1.2
V, coincident tracking will not be possible in all cases. A higher R2
value may be required, giving a ratiometric tracking instead.
Example:
External VTRACK = 3.3 V
Target VOUT = 2.5 V
R1 = 10 kΩ
VOUT_COMMAND = 2.5 V => RDIV = 0.31597
R2 = 10 / 0.31597– 10 = 21.6 kΩ
2. Ratiometric tracking. Output voltage is ramped at a rate that is a
percentage of the VTRACK voltage. To achieve ratiometric tracking, R2
should be set according to Eq. 6 with VOUT being the desired output
voltage. The PMBus™ command VOUT_COMMAND should be set
equal to or higher than the output voltage given by Eq. 5, or not being
set at all giving the default VOUT_COMMAND value 5.25 V. Since the
target voltage level is decided by the R1//R2 divider there will be a
small regulation inaccuracy due to the tolerance of the resistors. Note
also that VOUT will be higher than VTRACK if R1 / (R1 + R2) > RDIV.
Example:
External VTRACK = 3.3 V
Target VOUT = 1.3 V
VOUT_COMMAND not set => RDIV = 0.20272
R1 = 10 kΩ
Eq. 7 =>
During voltage tracking compensation calibration is triggered
when the output voltage is above 450 mV and stable within a 100 mV
window for two consecutive measurements at 10 ms intervals. When
calibration is complete, the power good (PG) output is asserted. The
PG output remains asserted until the output voltage falls below 450
mV, as verifi ed at 10 ms intervals. For this reason, the PG output may
remain high for as much as 10 ms after the output voltage has fallen
below 450 mV.
When voltage tracking is enabled the output over voltage protection
limit is set 12% above VOUT_COMMAND as default. This limit may be
reconfi gured using the PMBus™ command VOUT_OV_FAULT_LIMIT.
Output under voltage protection is not functional in tracking mode.
Soft-start parameters TON_DELAY and TON_RISE are not functional
in tracking mode and will be set to their minimum values to prevent
interference with tracking. TOFF_DELAY and TOFF_FALL can be used
if soft-stop is enabled. In such case the output voltage will follow the
least of the output levels given by the soft-stop parameters and the
tracking equations.
Thermal Consideration
General
The product is designed to operate in different thermal environments
and suffi cient cooling must be provided to ensure reliable operation.
Cooling is achieved mainly by conduction, from the pins to the host
board, and convection, which is dependent on the airfl ow across the
product. Increased airfl ow enhances the cooling of the product.
The Output Current Derating graph found in the Output section
for each model provides the available output current vs. ambient air
temperature and air velocity at specifi ed VI.
The product is tested on a 254 x 254 mm, 35 µm (1 oz), test board
mounted vertically in a wind tunnel with a cross-section of 608 x 203
mm. The test board has 8 layers.
Proper cooling of the product can be verifi ed by measuring the
temperature at positions P1, P2 and P3. The temperature at these
positions should not exceed the max values provided in the table
below. Note that the max value is the absolute maximum rating (non
destruction) and that the electrical Output data is guaranteed up to
TP1 +95°C.
Coincident Voltage Tracking
Time
R1 / (R1 + R2) = RDIV
Voltage
V
TRACK
V
OUT
VOUT_
COMMAND
Ratiometric Voltage Tracking
Time
R1 / (R1 + R2) < RDIV
Voltage
V
TRACK
V
OUT
2
1
R
R
RDIV
V
TRACK
u
Ω=
⎟
⎟
⎠
⎞
⎜
⎜
⎝
⎛−
×
×= kR 1151
3.120272.0
3.3
102
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 19 of 28
www.murata-ps.com/support
Mm“. My salmon; fikaml
* a BEBE
n DE!
El
El
El
El
E
Defi nition of Product Operating Temperature
The product operating temperature is used to monitor the temperature
of the product. Proper thermal conditions can be verifi ed by measur-
ing the temperature at positions P1, P2 and P3. The temperature
at these position (TP1,TP2, TP3) should not exceed the maximum
temperatures in the table below. The number of measurement points
may vary with different thermal design and topology.
* A guard band of 5 °C is applied to the maximum recorded compo-
nent temperatures when calculating output current derating curves.
** See section Alternative thermal verifi cation.
Defi nition of Reference Temperature TP1
The reference temperature is used to monitor the temperature limits
of the product. Temperature above maximum TP1, measured at the
reference point P1 is not allowed and may cause degradation or
permanent damage to the product. TP1 is also used to defi ne the
temperature range for normal operating conditions. TP1 is defi ned by
the design and used to guarantee safety margins, proper operation
and high reliability of the product.
Alternative Thermal Verifi cation
Since it is diffi cult to access positions P1 and P3 of the product,
measuring the temperature at only position P2 is an alternative
method to verify proper thermal conditions. If measuring only TP2 the
maximum temperature of P2 must be lowered since in some operat-
ing conditions TP1 will be higher than TP2. Using a temperature limit
of 115°C for TP2 will make sure that the temperatures at all points P1,
P2 and P3 stay below their maximum limits.
Over Temperature Protection (OTP)
The internal temperature of the product is continously monitored at
position P3. When the internal temperature rises above the confi gured
threshold level the product will respond as confi gured. The product
can respond in a number of ways as follows:
1. Continue operating without interruption (this could result in perma-
nent damage to the product).
2. Continue operating for a given delay period, followed by an output
voltage shutdown if the fault still exists.
3. Immediate and defi nite shutdown of output voltage until the fault is
cleared by PMBus™ or the output voltage is re-enabled.
4. Immediate shutdown of output voltage while the fault is present.
Operation resumes and the output is enabled when the fault condi-
tion no longer exists.
Default response is 4. The OTP protection uses hysteresis so that
the fault exists until the temperature has fallen to a certain level (OT_
WARN_LIMIT) below the fault threshold. The default OTP threshold
and hysteresis are specifi ed in Electrical Characteristics.
The OTP limit, hysteresis and response can be reconfi gured using
the PMBus™ commands OT_FAULT_LIMIT, OT_WARN_LIMIT and
OT_FAULT_RESPONSE.
The product also incorporates a non-confi gurable hard-coded
thermal shutdown associated with the temperature monitored at
position P3 to ensure long-term fl ash-memory integrity. See Electrical
Characteristics.
Connections
The table below gives a brief description of the functionality of each
pin. A more detailed description can be found in the different subsec-
tions of the Operating Information section.
Position Description Max Temperature
P1 T3, FET
Reference point 125°C *
P2 L1, Inductor 125°C * (115°C **)
P3 N1, Control circuit 115°C *
Temperature positions and air fl ow direction. Top view.
AIR FLOW P1
P3
P2
Pin layout, bottom view.
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 20 of 28
www.murata-ps.com/support
Mm“. My salmon; Wkami
Pin Designation Function
1A, 1B, 2A, 2B,
2C, 2D VOUT Output Voltage
3A, 3B, 4A, 4B,
5A, 5B GND Power Ground
5C, 6A, 6B, 6C VIN Input Voltage
1C +S Positive sense. Connect to output voltage close to
the load
1D -S Negative sense. Connect to power ground close to
the load.
1E PG
Power Good output. Asserted high when the product
is ready to provide regulated output voltage to the
load. Open drain. See section Power Good.
1F SA0 PMBus™ address pin strap. Used with external
resistors to assign a unique PMBus™ address to the
product. See section PMBus™ Interface.
3E SA1
2F VSET
Output voltage pin strap. Used with external resistor
to set the nominal output voltage or to select track-
ing mode. See section Output Voltage Adjust using
Pin-strap Resistor.
3F PREF Pin-strap reference. Ground reference for pin-strap
resistors.
6D CTRL
Remote Control. Can be used to enable/disable the
output voltage of the product. See section Remote
Control.
2E SYNC External switching frequency synchronization input.
See section Synchronization.
5F SALERT PMBus™ Alert. Asserted low when any of the con-
fi gured protection mechanisms indicate a fault.
6E SDA PMBus™ Data. Data signal for PMBus™ communi-
cation. See section PMBus™ Interface.
6F SCL PMBus™ Clock. Clock for PMBus™ communication.
See section PMBus™ Interface.
4F CS_VTRK
Voltage Tracking input. Allows for tracking of output
voltage to an external voltage. See section Voltage
Tracking. In normal operation when tracking is not
used, this pin must be connected to PREF.
4E RSVD Reserved. Connect to PREF.
5D, 5E NC No connection
Unused Pins
Unused pins should be connected according to the table below. Note
that connection of CS_VTRK to PREF is required for normal standalone
operation. VSET should always have a pin strap resistor.
Typical Application Circuit
PCB Layout Consideration
The radiated EMI performance of the product will depend on the PCB
layout and ground layer design. If a ground layer is used, it should be
connected to the output of the product and the equipment ground or
chassis.
A ground layer will increase the stray capacitance in the PCB and
improve the high frequency EMC performance.
Further layout recommendations are listed below.
The pin strap resistors, RSET, and RSA0/RSA1 should be placed as close to
the product as possible to minimize loops that may pick up noise.
Avoid current carrying planes under the pin strap resistors and the PM-
Bus™ signals.
The capacitors CI should be placed as close to the input pins as possible.
The capacitors CO should be placed close to the load.
The point of output voltage sense should be “downstream” of CO according
to fi
gure below.
Care should be taken in the routing of the connections from the sensed
output voltage to the S+ and S– terminals. These sensing connections
should be routed as a differential pair, preferably between ground planes
which are not carrying high currents. The routing should avoid areas of
high electric or magnetic fi elds.
If possible use planes on several layers to carry VI, VO and GND. There
should be a large number of vias close to the VIN, VOUT and GND pads in
order to lower input and output impedances and improve heat spreading
between the product and the host board.
Unused Pin Connection
CS_VTRK PREF. Required for normal operation
CTRL Open (pin has internal pull-up)
RSVD PREF or pulled down to PREF
SYNC PREF or pulled down to PREF
SA0 PREF or Open
SA1 PREF or Open
SDA Pull-up resistor to voltage > 2 V
SCL Pull-up resistor to voltage > 2 V
PG Open
SALERT Open
Typical standalone operation with PMBus communication.
VIN VOUT
+S
-S
CTRL PG
SA0
SA1
VSET
PREF SALERT
SCL
CS_VTRK SDA
SYNC
RSVD GND
V
OUT
L
O
A
D
V
IN
C
O
C
I
R
SA0
R
SA1
R
SET
3 x R
PU
= 2.2 k
2.7-3.6 V
SALERT
SCL
SDA
DGND
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 21 of 28
www.murata-ps.com/support
3 I
Murcia Power Solutions fikaml
I I
I
coco oooooo : I
I I
I I
SOL
SD
——5 NC
PMBus™ Interface
This product provides a PMBus™ digital interface that enables the
user to confi gure many aspects of the device operation as well as
to monitor the input and output voltages, output current and device
temperature. The product can be used with any standard two-wire
I2C or SMBus host device. In addition, the product is compatible with
PMBus™ version 1.1 and includes an SALERT line to help mitigate
bandwidth limitations related to continuous fault monitoring. The
PMBus™ signals, SCL, SDA and SALERT require passive pull-up
resistors as stated in the SMBus Specifi cation. Pull-up resistors are
required to guarantee the rise time as follows:
where Rp is the pull-up resistor value and Cp is the bus loading. The
maximum allowed bus load is 400 pF. The pull-up resistor should
be tied to an external supply voltage in range from 2.7-3.6 V, which
should be present prior to or during power-up. If the proper power
supply is not available, voltage dividers may be applied. Note that in
this case, the resistance in the equation above corresponds to parallel
connection of the resistors forming the voltage divider.
Monitoring via PMBus™
It is possible to monitor a wide variety of parameters through the
PMBus™ interface. Fault conditions can be monitored using the
SALERT pin, which will be asserted when any number of pre-confi g-
ured fault or warning conditions occur. It is also possible to continu-
ously monitor one or more of the power conversion parameters
including but not limited to the following:
Input voltage (READ_VIN)
Output voltage (READ_VOUT)
Output current (READ_IOUT)
Internal junction temperature (READ_TEMPERATURE_1)
Switching frequency (READ_FREQUENCY)
Duty cycle (READ_DUTY_CYCLE)
Reading Set Parameters
To clearly display the true performance of the product, PMBus™
command reads of set levels, limits and timing parameters will return
the internally used values. For this reason, due to rounding or internal
representation in the controller of the product, there may be a differ-
ence between written and read value of a PMBus™ command. This
applies to PMBus™ commands of type Linear or VoutLinear. When
verifying write transactions, tolerances according to the table below
can be used.
PMBus™ Command Read Back Accuracy
COMP_MODEL ±0
VIN_ON
±0.1 V
VIN_OFF
VIN_UV_FAULT_LIMIT
VIN_OV_FAULT_LIMIT
IOUT_OC_FAULT_LIMIT ±0.1 A
TON_DELAY ±0.3 ms
TOFF_DELAY
TON_RISE ±0.4 ms
TOFF_FALL
VOUT_COMMAND
±0.001 V
VOUT_MAX
VOUT_MARGIN_HIGH
VOUT_MARGIN_LOW
VOUT_TRANSITION_RATE ±0.5 V
VOUT_OV_FAULT_LIMIT
±0.01 V
VOUT_UV_FAULT_LIMIT
POWER_GOOD_ON
POWER_GOOD_OFF
Non-Volatile Memory (NVM)
The product incorporates two Non-Volatile Memory areas for storage of
the supported PMBus™ commands; the Default NVM and the User NVM.
The Default NVM is pre-loaded with Murata Power Solutions factory
default values. The Default NVM is write-protected and can be used
to restore the Murata Power Solutions factory default values through
the command RESTORE_DEFAULT_ALL. The RESTORE_DEFAULT_ALL
command will load a nominal output level of 0 V. Therefore, after a
RESTORE_DEFAULT_ALL command is sent, the input voltage must be
cycled in order to load correct output voltage level according to VSET
pin-strap resistor (see section Startup procedure).
The User NVM is pre-loaded with Murata Power Solutions factory
default values. The User NVM is writable and open for customization.
The values in the User NVM are loaded during initialization whereaf-
ter commands can be changed through the PMBus™ Interface. The
STORE_USER_ALL command will store the changed parameters to
the User NVM.
Layout guidelines
V
O
+S
SCL
SDA
SYNC
LOAD
-S
C
I
C
O
GND
V
I
R
SA0,
R
SET,
R
SA1
V
I
R
S
A
0
,
R
SE
S
C
L
S
DA
S
Y
N
C
ET
,
R
S
A
1
GND
CR
Pp
Ps
W
1
d
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 22 of 28
www.murata-ps.com/support
Murcia Power Solutions mkamj
RSA1 [k]
≤ 4.22 5.11 6.19 7.15 8.25
9.53 11.0 12.7 14.7 17.8
21.5 26.1 31.6 38.3 44.2
51.1 59.0 68.1 86.6 115
RSA0 [k] 140 169 205 237 ≥ 274
≤ 4.22 0x0A 0x22 0x3A 0x52 0x6A
5.11 0x0B 0x23 0x3B 0x53 0x6B
6.19 0x0C 0x24 0x3C 0x54 0x6C
7.15 0x0D 0x25 0x3D 0x55 0x6D
8.25 0x0E 0x26 0x3E 0x56 0x6E
9.53 0x0F 0x27 0x3F 0x57 0x6F
11.0 0x10 0x28 0x40 0x58 0x70
12.7 0x11 0x29 0x41 0x59 0x71
14.7 0x12 0x2A 0x42 0x5A 0x72
17.8 0x13 0x2B 0x43 0x5B 0x73
21.5 0x14 0x2C 0x44 0x5C 0x74
26.1 0x15 0x2D 0x45 0x5D 0x75
31.6 0x16 0x2E 0x46 0x5E 0x76
38.3 0x17 0x2F 0x47 0x5F 0x77
44.2 0x18 0x30 0x48 0x60 0x78
51.1 0x19 0x31 0x49 0x61 0x79
59.0 0x1A 0x32 0x4A 0x62 0x7A
68.1 0x1B 0x33 0x4B 0x63 0x7B
86.6 0x1C 0x34 0x4C 0x64 0x7C
115 0x1D 0x35 0x4D 0x65 0x7D
140 0x1E 0x36 0x4E 0x66 0x7E
169 0x1F 0x37 0x4F 0x67 0x7F
205 0x20 0x38 0x50 0x68 0x7F
≥ 237 0x21 0x39 0x51 0x69 0x7F
Optional PMBus™ Addressing
The user may leave SA0/SA1 open or shorted to PREF.
Shorting SA0/SA1 to PREF corresponds to RSA0/RSA1 ≤ 4.22 kΩ in
the address table above.
Leaving SA0/SA1 open corresponds to RSA0/RSA1 ≥ 274 kΩ in the
address table above.
Reserved Addresses
Addresses listed in the table below are reserved or assigned accord-
ing to the SMBus specifi cation and may not be usable. Refer to the
SMBus specifi cation for further information.
Protecting Commands
The user may write-protect specifi c PMBus™ commands in the User
NVM by following the steps below.
1. Enter the default password 0x0000 through the command USER_
PASSWD. After the correct password is entered, SECURITY_LEVEL
will read back 0x01 instead of default 0x00.
2. If desired, defi ne a new password by writing it to the USER_LOCK
command.
3. Defi ne which commands should be locked by using the 256
bit command USER_CONF. Setting bit X will write-protect the
PMBus™ command with code X.
4. Send command STORE_USER_ALL.
5. Cycle the input voltage.
Software Tools for Design and Production
Murata Power Solutions provides software tools for confi guration and
monitoring of this product via the PMBus™ interface.
For more information please contact your local Murata Power Solu-
tions sales representative.
PMBus™ Addressing
The PMBus™ address should be confi gured with resistors connected
between the SA0/SA1 pins and the PREF pin, as shown in the table
and fi gure below. Note that fi ve different values of RSA1 produce
the same address. Recommended resistor values for hard-wiring
PMBus™ addresses are shown in the table. 1% tolerance resistors
are required. The confi gurable PMBus™ addresses range from 0x0A
to 0x7F. In total 118 device address combinations are provided.
User NVM
Murata factory default
Customizable
RAM
Default NVM
Write-protected
RESTORE_DEFAULT_ALL
WRITE
READ
PMBus interface
RESTORE_USER_ALL
STORE_USER_ALL
INITIALIZATION
Murata factory default
Schematic of connection of address resistor.
SA0
SA1
PREF
RSA1 RSA0
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 23 of 28
www.murata-ps.com/support
Mm“. My salmon; Wkami
When sending subsequent commands to the same unit it is recommended
to insert additional delays after write transactions according to the table
below.
PMBus™ Command Delay after Write before Additional Command
STORE_USER_ALL
500 msSTORE_DEFAULT_ALL
DEADTIME_GCTRL
USER_CONF 350 ms
MANUF_CONF
RESTORE_USER_ALL
10 msRESTORE_DEFAULT_ALL
FREQUENCY_SWITCH
VOUT_DROOP
0.5 ms
IOUT_CAL_GAIN
ADAPTIVE_MODE
FEEDBACK_EFFORT
LOOP_CONFIG
COMP_MODEL
ZETAP
PMBus™ Commands
The product is PMBus™ compliant. The following table lists all the
implemented PMBus™ read commands. For more detailed informa-
tion see PMBus™ Power System Management Protocol Specifi cation;
Part I – General Requirements, Transport and Electrical Interface and
PMBus Power System Management Protocol; Part II – Command
Language.
Designation Code Impl*
Standard PMBus™ Commands
Control Commands
PAGE 00h No
OPERATION 01h Yes
ON_OFF_CONFIG 02h Yes
WRITE_PROTECT 10h Yes
Output Commands
CAPABILITY (read only) 19h Yes
VOUT_MODE (read Only) 20h Yes
VOUT_COMMAND 21h Yes
VOUT_TRIM 22h Yes
VOUT_CAL_OFFSET 23h Yes
VOUT_MAX 24h Yes
VOUT_MARGIN_HIGH 25h Yes
VOUT_MARGIN_LOW 26h Yes
VOUT_TRANSITION_RATE 27h Yes
VOUT_DROOP 28h Yes
MAX_DUTY 32h No
FREQUENCY_SWITCH 33h Yes
VIN_ON 35h Yes
VIN_OFF 36h Yes
IOUT_CAL_GAIN 38h Yes
IOUT_CAL_OFFSET 39h Yes
VOUT_SCALE_LOOP 29h No
VOUT_SCALE_MONITOR 2Ah No
COEFFICIENTS 30h No
Address Comment
0x00 General Call Address / START byte
0x01 CBUS address
0x02 Address reserved for different bus format
0x03 - 0x07 Reserved for future use
0x08 SMBus Host
0x09 - 0x0B Assigned for Smart Battery
0x0C SMBus Alert Response Address
0x28 Reserved for ACCESS.bus host
0x2C - 0x2D Reserved by previous versions of the SMBus specifi cation
0x37 Reserved for ACCESS.bus default address
0x40 - 0x44 Reserved by previous versions of the SMBus specifi cation
0x48 - 0x4B Unrestricted addresses
0x61 SMBus Device Default Address
0x78 - 0x7B 10-bit slave addressing
0x7C - 0x7F Reserved for future use
I2C/SMBus – Timing
The setup time, tset, is the time data, SDA, must be stable before
the rising edge of the clock signal, SCL. The hold time thold, is the
time data, SDA, must be stable after the falling edge of the clock
signal, SCL. If these times are violated incorrect data may be captured
or meta-stability may occur and the bus communication may fail. All
standard SMBus protocols must be followed, including clock stretch-
ing. Refer to the SMBus specifi cation, for SMBus electrical and timing
requirements.
The bus-free time (time between STOP and START packet) accord-
ing to Electrical Specifi cation must be followed.
The product supports PEC (Packet Error Checking) according to the
SMBus specifi cation.
In operation cases according to the list below the product’s control-
ler will be executing processor-intensive tasks and may not respond
to PMBus™ commands.
During the presence of an overcurrent fault.
Just after the output voltage has been enabled. It is recommended to wait
until PG is asserted (or the equivalent time) before sending commands.
Setup and hold times timing diagram
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 24 of 28
www.murata-ps.com/support
Mum power sauna“.s Warm
Designation Code Impl*
READ_FREQUENCY 95h Yes
READ_POUT 96h No
READ_PIN 97h No
Group Commands
INTERLEAVE 37h Yes
PHASE_CONTROL F0h No
Identifi cation Commands
PMBUS_REVISION 98h Yes
MFR_ID 99h Yes
MFR_MODEL 9Ah Yes
MFR_REVISION 9Bh Yes
MFR_LOCATION 9Ch Yes
MFR_DATE 9Dh Yes
MFR_SERIAL 9Eh Yes
IC_DEVICE_ID ADh Yes
IC_DEVICE_REV AEh Yes
Supervisory Commands
STORE_DEFAULT_ALL 11h Yes
RESTORE_DEFAULT_ALL 12h Yes
STORE_USER_ALL 15h Yes
RESTORE_USER_ALL 16h Yes
Product Specifi c Commands
ADAPTIVE_MODE D0h Yes
FEEDBACK_EFFORT D3h Yes
LOOP_CONFIG D5h Yes
TEST_MODE D9h Yes
COMP_MODEL DBh Yes
STRAP_DISABLE DCh Yes
MANUF_CONF E0h Yes
MANUF_LOCK E1h Yes
MANUF_PASSWD E2h Yes
USER_CONF E3h Yes
USER_LOCK E4h Yes
USER_PASSWD E5h Yes
SECURITY_LEVEL E6h Yes
DEADTIME_GCTRL E7h Yes
ZETAP E8h Yes
*Impl stands for Implemented.
Designation Code Impl*
Fault Limit Commands
POWER_GOOD_ON 5Eh Yes
POWER_GOOD_OFF 5Fh Yes
VOUT_OV_FAULT_LIMIT 40h Yes
VOUT_OV_WARN_LIMIT 42h No
VOUT_UV_WARN_LIMIT 43h No
VOUT_UV_FAULT_LIMIT 44h Yes
IOUT_OC_FAULT_LIMIT 46h Yes
IOUT_OC_LV_FAULT_LIMIT 48h No
IOUT_OC_WARN_LIMIT 4Ah No
IOUT_UC_FAULT_LIMIT 4Bh No
OT_FAULT_LIMIT 4Fh Yes
OT_WARN_LIMIT 51h Yes
UT_WARN_LIMIT 52h No
UT_FAULT_LIMIT 53h No
VIN_OV_FAULT_LIMIT 55h Yes
VIN_OV_WARN_LIMIT 57h No
VIN_UV_WARN_LIMIT 58h No
VIN_UV_FAULT_LIMIT 59h Yes
Fault Response Commands
VOUT_OV_FAULT_RESPONSE 41h Yes
VOUT_UV_FAULT_RESPONSE 45h Yes
OT_FAULT_RESPONSE 50h Yes
UT_FAULT_RESPONSE 54h No
VIN_OV_FAULT_RESPONSE 56h Yes
VIN_UV_FAULT_RESPONSE 5Ah Yes
IOUT_OC_FAULT_RESPONSE 47h Yes
IOUT_OC_LV_FAULT_RESPONSE 49h No
IOUT_UC_FAULT_RESPONSE 4Ch No
TON_MAX_FAULT_RESPONSE 63h Yes
Time setting Commands
TON_DELAY 60h Yes
TON_RISE 61h Yes
TOFF_DELAY 64h Yes
TOFF_FALL 65h Yes
TON_MAX_FAULT_LIMIT 62h Yes
Status Commands (Read Only)
CLEAR_FAULTS 03h Yes
STATUS_BYTE 78h Yes
STATUS_WORD 79h Yes
STATUS_VOUT 7Ah Yes
STATUS_IOUT 7Bh Yes
STATUS_INPUT 7Ch Yes
STATUS_TEMPERATURE 7Dh Yes
STATUS_CML 7Eh Yes
STATUS_MFR_SPECIFIC 80h Yes
Monitor Commands (Read Only)
READ_VIN 88h Yes
READ_IIN 89h No
READ_VOUT 8Bh Yes
READ_IOUT 8Ch Yes
READ_TEMPERATURE_1 8Dh Yes
READ_TEMPERATURE_2 8Eh Yes
READ_FAN_SPEED_1 90h No
READ_DUTY_CYCLE 94h Yes
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 25 of 28
www.murata-ps.com/support
g u
Murcia Power Solutions flkaml
s
m 3151
m
E—
T ’JP V \E w‘ ‘
‘mujsm: W my
PW pnsmcns urnrmnq
m 'Urcrrrrfiidbd mummy
[cu]
MW»
I‘REZCMMENDED FCOTijT , TCF WEW
mans]
wusn: Wm 32 g
m mm W n [m]
Yammntn n‘csssnzmm
xx M u
mms wv mm}
mm .weu an mm .- «yuw vulusb)
E‘
.wsr‘r tuninnrfls
Rrrmmrnnrr Krr‘p rm 0'70
MECHANICAL SPECIFICATIONS
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 26 of 28
www.murata-ps.com/support
Mum power sauna“.s ”km
r444 1
L444 4
all solder joints is recommended to ensure a reliable solder joint.
Maximum Product Temperature Requirements
Top of the product PCB near pin A2 or A5 is chosen as reference loca-
tions for the maximum (peak) allowed product temperature (TPRODUCT)
since these will likely be the warmest part of the product during the
refl ow process.
SnPb solder processes
For SnPb solder processes, the product is qualifi ed for MSL 1 accord-
ing to IPC/JEDEC standard J STD 020C.
During refl ow TPRODUCT must not exceed 225 °C at any time.
Pb-free solder processes
For Pb-free solder processes, the product is qualifi ed for MSL 3
according to IPC/JEDEC standard J-STD-020C.
During refl ow TPRODUCT must not exceed 260 °C at any time.
Dry Pack Information
Surface mounted versions of the products are delivered in standard
moisture barrier bags according to IPC/JEDEC standard J STD 033
(Handling, packing, shipping and use of moisture/refl ow sensitivity
surface mount devices).
Using products in high temperature Pb-free soldering processes
requires dry pack storage and handling. In case the products have
been stored in an uncontrolled environment and no longer can be
considered dry, the modules must be baked according to J STD 033.
Thermocoupler Attachment
Surface Mount Assembly and Repair
The LGA of the product require particular care during assembly since
the LGA´s are hidden between the host board and the product’s
PCB. Special procedures are required for successful rework of these
products.
Soldering Information - Surface Mounting
The surface mount product is intended for forced convection or vapor
phase refl ow soldering in SnPb or Pb-free processes.
The refl ow profi le should be optimised to avoid excessive heating
of the product. It is recommended to have a suffi ciently extended
preheat time to ensure an even temperature across the host PCB and
it is also recommended to minimize the time in refl ow.
A no-clean fl ux is recommended to avoid entrapment of cleaning
fl uids in cavities inside the product or between the product and the
host board, since cleaning residues may affect long time reliability
and isolation voltage.
General reflow process specifications SnPb eutectic Pb-free
Average ramp-up (TPRODUCT) 3°C/s max 3°C/s max
Typical solder melting (liquidus)
temperature TL183°C 221°C
Minimum refl ow time above TL 30 s 30 s
Minimum pin temperature TPIN 210°C 235°C
Peak product temperature TPRODUCT 225°C 260°C
Average ramp-down (TPRODUCT) 6°C/s max 6°C/s max
Maximum time 25°C to peak 6 minutes 8 minutes
Minimum Pin Temperature Recommendations
Pin number C1 or D1 are chosen as reference location for the mini-
mum pin temperature recommendation since these will likely be the
coolest solder joint during the refl ow process.
SnPb solder processes
For SnPb solder processes, a pin temperature (TPIN) in excess of the
solder melting temperature, (TL, 183°C for Sn63Pb37) for more than
30 seconds and a peak temperature of 210°C is recommended to
ensure a reliable solder joint.
For dry packed products only: depending on the type of solder
paste and fl ux system used on the host board, up to a recommended
maximum temperature of 245°C could be used, if the products are
kept in a controlled environment (dry pack handling and storage) prior
to assembly.
Lead-free (Pb-free) solder processes
For Pb-free solder processes, a pin temperature (TPIN) in excess of
the solder melting temperature (TL, 217 to 221°C for SnAgCu solder
alloys) for more than 30 seconds and a peak temperature of 235°C on
T
PRODUCT
maximum
T
PIN
minimum
Time
niP
profile
Product
profile
T
L
Time in
reflow
Time in preheat
/ soak zone
Time 25°C to peak
Temperature
Pin C1 or D1 for measurement of minimum
Pin (solder joint) temperature TPIN
Top of PWB near pin A2 or A5 for measurement
of maximum product temperature, TPRODUCT
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 27 of 28
www.murata-ps.com/support
Mm“. My salmon; fikaml
OOOOOOOOOOOOO
Hm lg!"
Assembly
Automatic pick and place equipment should be used to mount
the product on the host board. The use of a vision system, utiliz-
ing the fi ducials on the bottom side of the product, will ensure
adequate accuracy. Manual mounting of solder bump products is not
recommended.
This module is not recommended for assembly on the bottom side
of a customer board. If such an assembly is attempted, components
may fall off the module during the second refl ow process.
Repair
For a successful repair (removal and replacement) of a LGA product, a
dedicated rework system should be used. The rework system should
preferably utilize a refl ow station and a bottom side heater might also
be needed for the operation.
The product is an open frame design with a pick up surface on a
large central component (in this case the choke). This pick up surface
can be used for removal of the module provided that it is glued
against module PCB before removal to prevent it from separating from
the module PCB.
Delivery Package Information
The products are delivered in antistatic carrier tape (EIA 481
standard).
Carrier Tape Specifications
Material PS, antistatic
Surface resistance < 107 Ohm/square
Bakeability The tape is not bakable
Tape width, W 24 mm [0.94 inch]
Pocket pitch, P1 20 mm [0.79 inch]
Pocket depth, K0 8.6 mm [0.339 inch]
Reel diameter 330 mm [13 inch]
Reel capacity 280 products /reel
Reel weight 1160 g/full reel
ROUND SPROCKET
OKDL-T/18-W12-xxx-C
18A Digital PoL DC-DC Converter Series
MDC_OKDL-T/18-W12-xxx-C.A03 Page 28 of 28
www.murata-ps.com/support
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifi cations are subject to change without
notice. © 2016 Murata Power Solutions, Inc.
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfi eld, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
This product is subject to the following operating requirements
and the Life and Safety Critical Application Sales Policy:
Refer to: http://www.murata-ps.com/requirements/
Products related to this Datasheet
DC DC CONVERTER 0.6-1.8V
DC DC CONVERTER 0.6-1.8V
DC DC CONVERTER 0.6-1.8V
